Infrared Flame Detector LCF001 Series

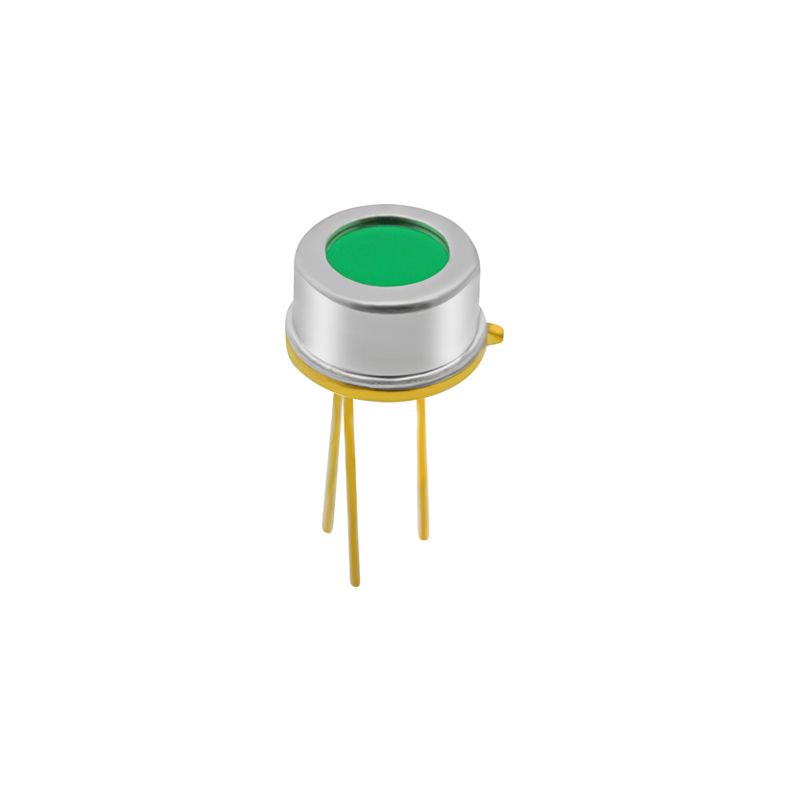

Overview

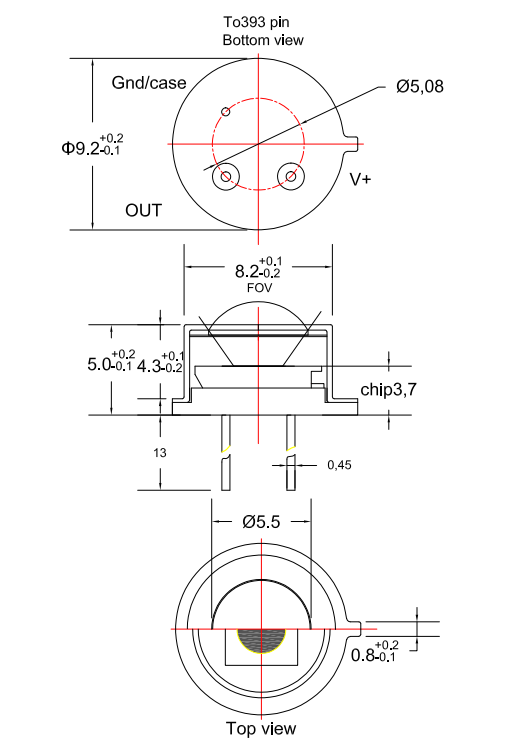

封装尺寸 Package dimensions in mm



 Infrared Flame Detector LCF001 Series

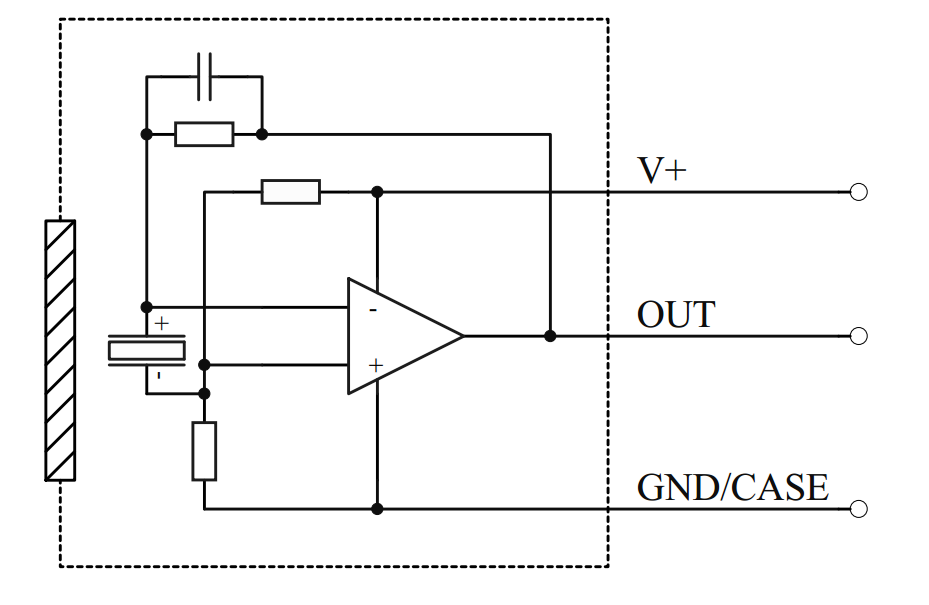

工作原理 Working principle

 Infrared Flame Detector LCF001 Series

典型滤光片参数,其他参数可根据客户具体要求定制

Typical Filters parameters are shown in the figure below, other parameters can be customized according to customer specific requirements.





中心波长CWL

4400nm

3800nm

5300nm

半高宽HPB

450nm

140nm

180nm

探测器型号 Detector type

LCF001-I-01

LCF001-H-01

LCF001-D-01


Datasheet

技术指标

Technical Specifications

符号

Symbol

典型值

Typical value

单位

 Unit

窗口尺寸 Window Size

-

Ф5.5

mm

敏感区域尺寸 Element Size

As

Ф2.5

mm

热时间常数 Thermal Time Constant

τT

50

ms

工作电压 Drain Voltage

Vd

5-26

V

推荐工作电压Recommended Supply Voltage

Vr

9

V

视场角 Field of View

FOV

>110

°

噪声密度Noise Density {10Hz,BW 1Hz,25℃}

Vn

<70

μVrms/Hz1/2

电压响应率(无窗口)Voltage Responsivity(Without Filter)

{500K,10Hz,25℃}

Rv

>200000

V/W

比探测率(无窗口)Detectivity(Without Filter)

{500K,10Hz,BW 1Hz,25℃}

D

>4.4E+08

cmHz1/2/W

工作温度范围 Operating Temperature

-

-40—+80

运算放大器 CMOS OpAmp

-

400 X

-
