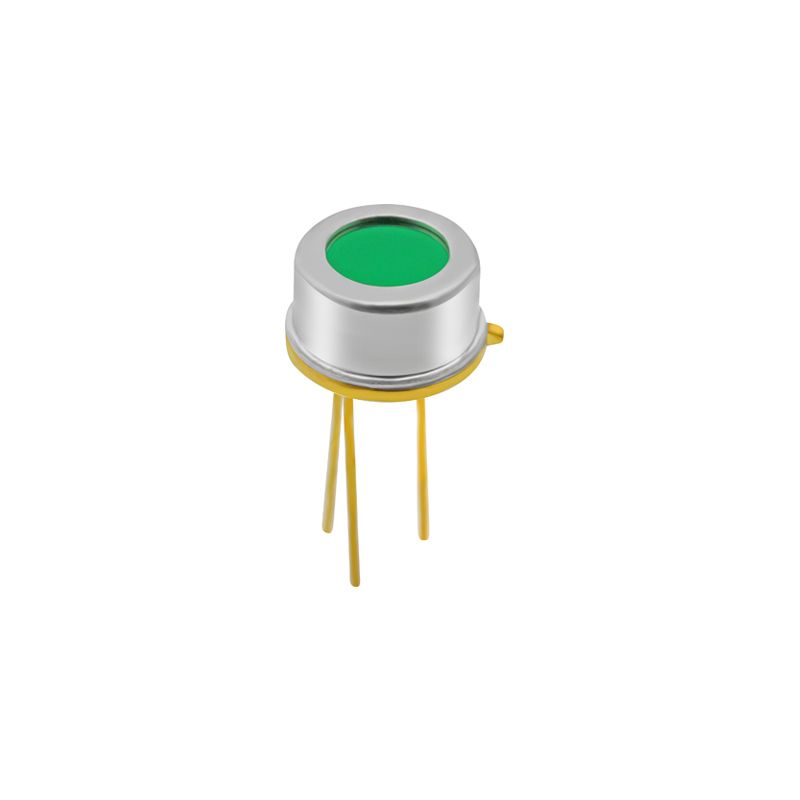

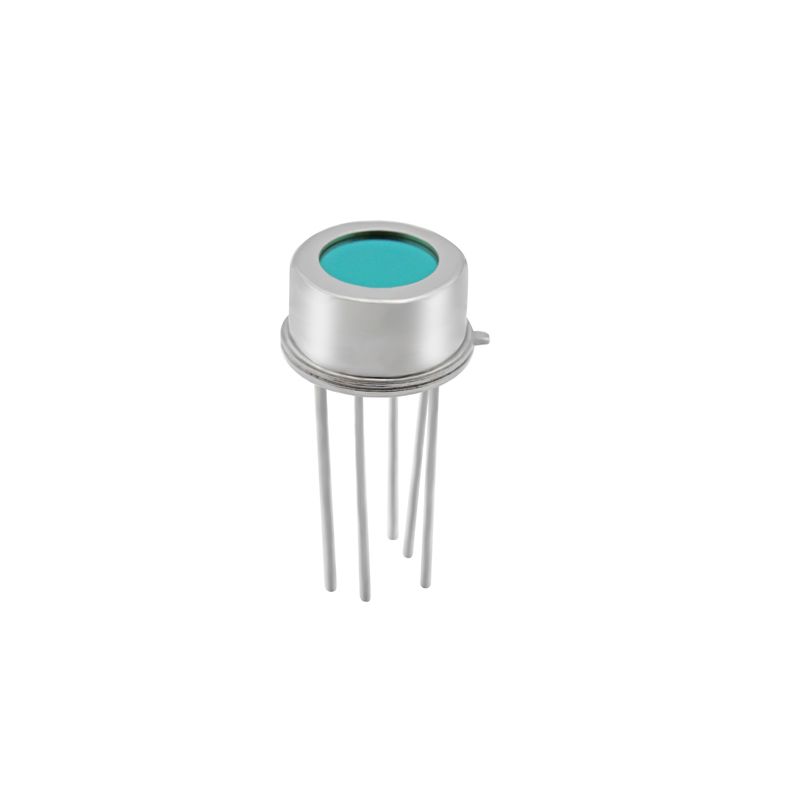

Infrared Flame Detector LVF001 Series

Flame Detector
Single Channel
TO39 Housing
Voltage Mode

Overview

Flame Detector

Single Channel

TO39 Housing

Voltage Mode


Feature

Typical Filters parameters are shown in the figure below, other parameters can be customized according to customer specific requirements.

CWL

4400nm

3800nm

5300nm

HPB

450nm

140nm

180nm

 Detector type

LVF001-I-01

LVF001-H-01

LVF001-D-01


Datasheet

Technical Specifications

Symbol

Typical value

 Unit

Window Size


Ф5.5

mm

Element Size

As

Ф2.5

mm

Electrical Time Constant

τE

6.0

s

Thermal Time Constant

τT

200

ms

Offset voltage

Vs

0.4—0.7

V

Drain Voltage

Vd

2-15

V

Field of View

FOV

>110

°

Noise{10Hz,BW 1Hz,25}

Vn

<170

nVrms/Hz1/2

Voltage Responsivity(Without Filter)  {500K,10Hz,25℃}

Rv

>500

V/W

Detectivity(Without Filter)  {500K,10Hz,BW 1Hz,25℃}

D

>4*108

cmHz1/2/W

Operating Temperature


-40—+80

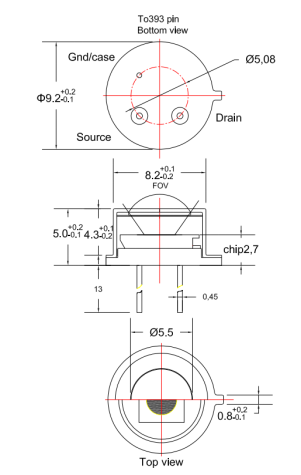

Package Dimensions

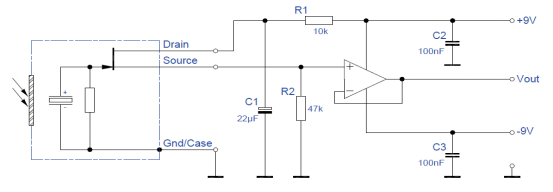

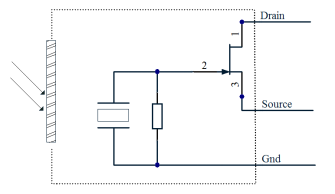

Test circuit
