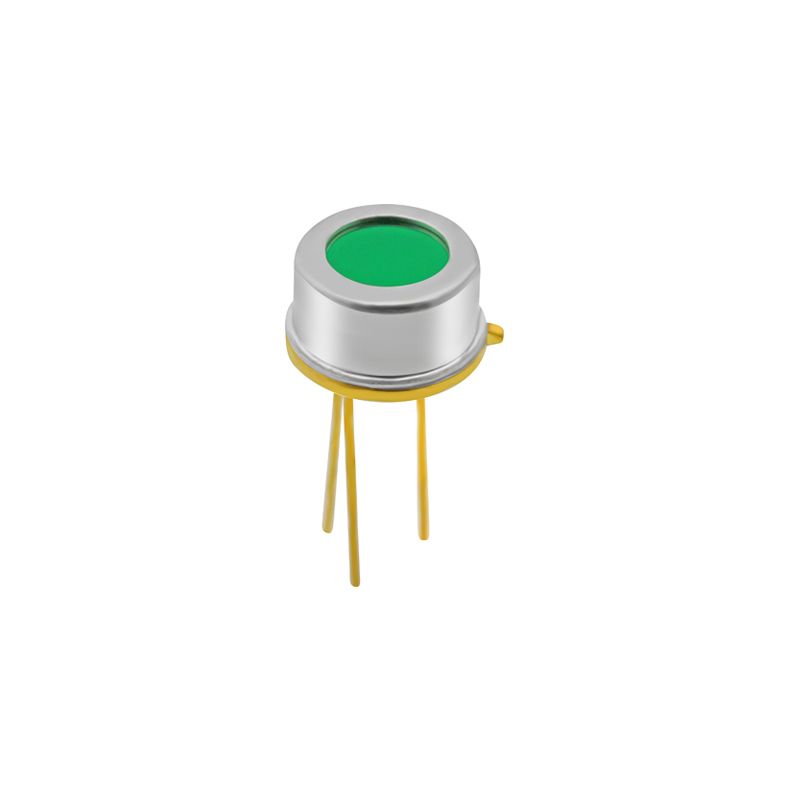

LVF002 Series

Technical Specifications

Symbol

Typical value

 Unit

Window Size

Ф5.5

mm

Element Size

As

2*2

mm

Electrical Time Constant

τ_E

3.0

s

Thermal Time Constant

τ_T

200

ms

Offset voltage

Vs

0.4—0.8

V

 Drain Voltage

Vd

2-15

V

 Field of View

FOV

>110

°

Noise{10Hz,BW 1Hz,25℃}

Vn

<130

nVrms/Hz^1/2

Voltage Responsivity(Without Filter)

{500K,10Hz,25℃}

Rv

>160

V/W

Detectivity(Without Filter)

{500K,10Hz,BW 1Hz,25℃}

D

>4*10⁸

cmHz^1/2/W

Operating Temperature

-25—+80

℃
