Fresnel Lens

Fresnel Lens

Home > Products > Fresnel Lens > SB-F-08

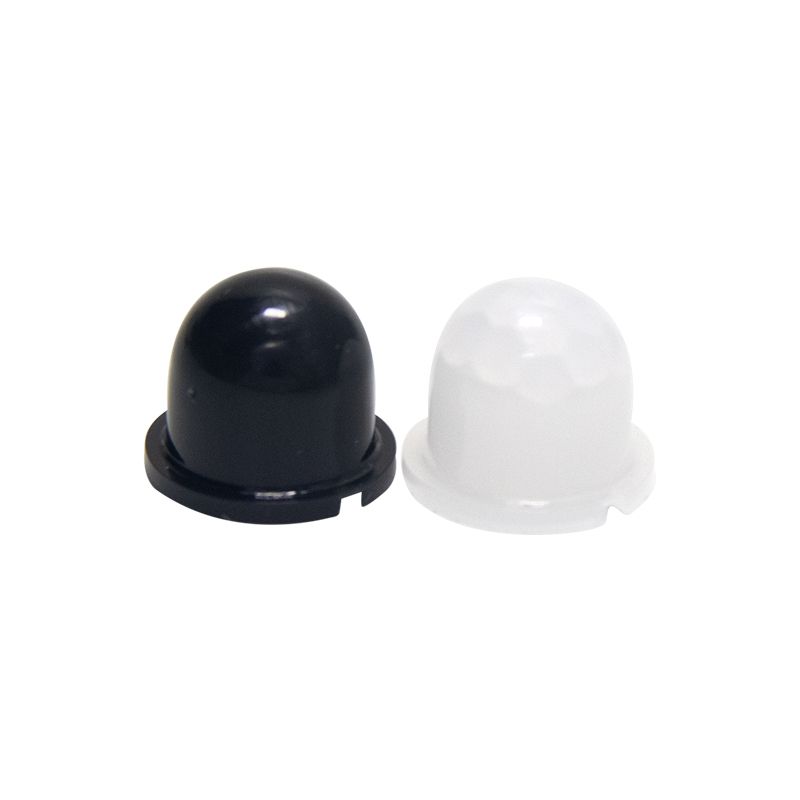

SB-F-08

SB-F-08

PROD Model:SB-F-08
Material : HDPE
Overall Size:Grain diameter 9.9mm(φ12*9.8mm)
Focal Length:5mm
Detectable Distance:≥5m
Viewing Angle:120°
Color : primary color 、black、 milky(Color customization is acceptable)
Inquire Now Next Product

Overview

Widely used in human body induction switch, alarm, infrared thermometer and infrared imaging and other aspects. Can provide users with different induction Angle, induction distance, size, test ratio. Fresnel lens action: one is focusing action; Second, the detection area is divided into a number of bright areas and dark areas, so that the moving objects entering the detection area can generate changes in the form of temperature changes on the PIR(passive infrared detector).

Feature

★ Smart panel

★ Small night light

★ Smart door lock

Datasheet


PROD Model SB-F-08
Material
HDPE
Overall sizeGrain diameter 9.9mm(φ12*9.8mm)
Focal length 5mm
Detectable distance ≥5m
Viewing angle120°
Colorprimary color 、black、 milky(Color customization is acceptable)

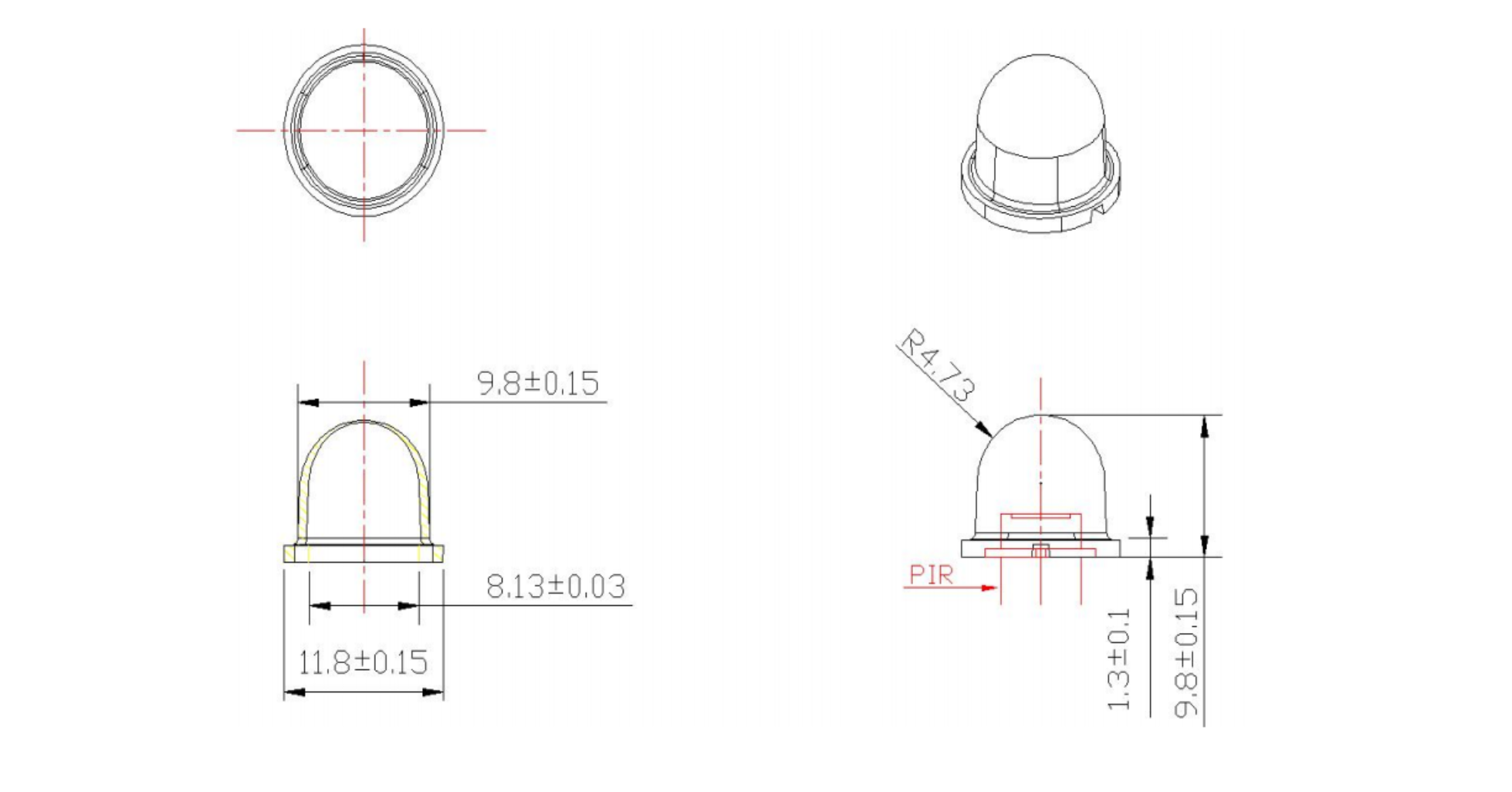

Dimension (Unit=mm)
