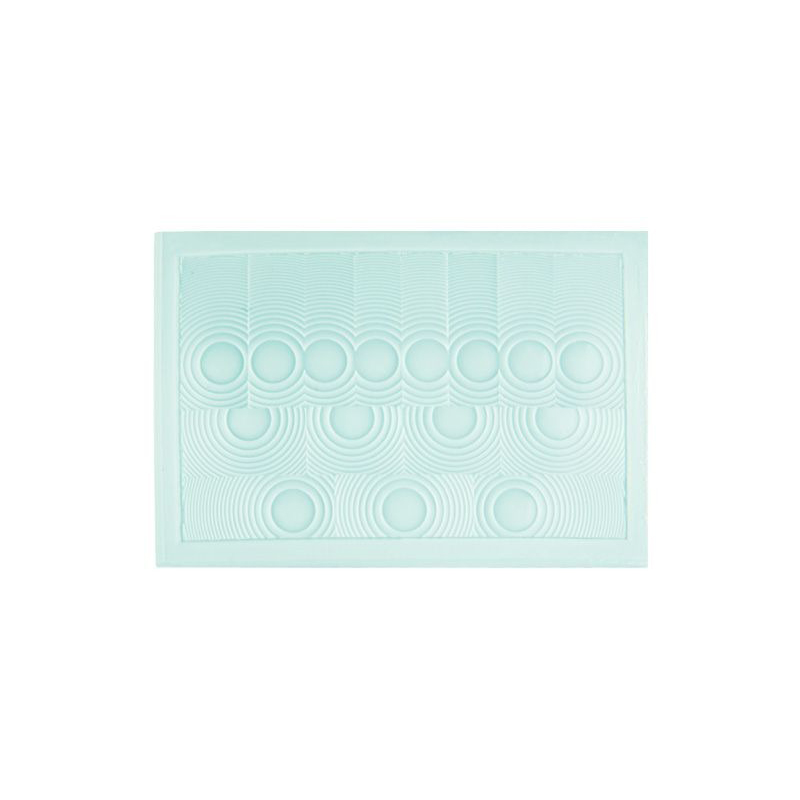

Fresnel Optical Lens Binary Fresnel Diffractive Lens D7002 For Smart Home System

Overview

PIR sensor must work with the Fresnel lens, to insure the long detect rang. Fresnel lens is the precision optical lens. Combining the products case, we can design different shape for fresnel lens. Fresnel lens arrays designed for Passive Infrared Sensor. The optical surface increases lens sensitivity for PIR sensor application. All the PIR sensor must work with the Fresnel Lens. Fresnel Lens can be made of polyolefin, glasses. One side is smooth, another side with thread.

The Advantages of Products

1. Easy to install

2. High quanlity

3. Factory price

Specification

Model NumberD7002
Overall size 61*42.7*0.6mm
Focal length 30.5mm
Detectable distance 24m
Viewing angle 83°
Color Transparent
Material HDPE
Type flat

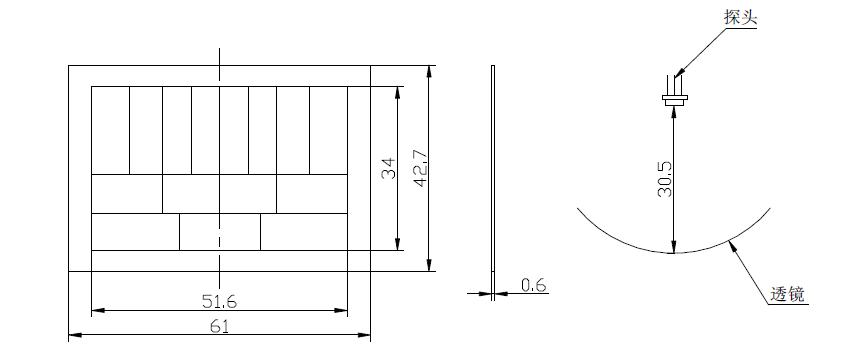

Dimension (Unit=mm)

Fresnel Optical Lens Binary Fresnel Diffractive Lens D7002 For Smart Home System

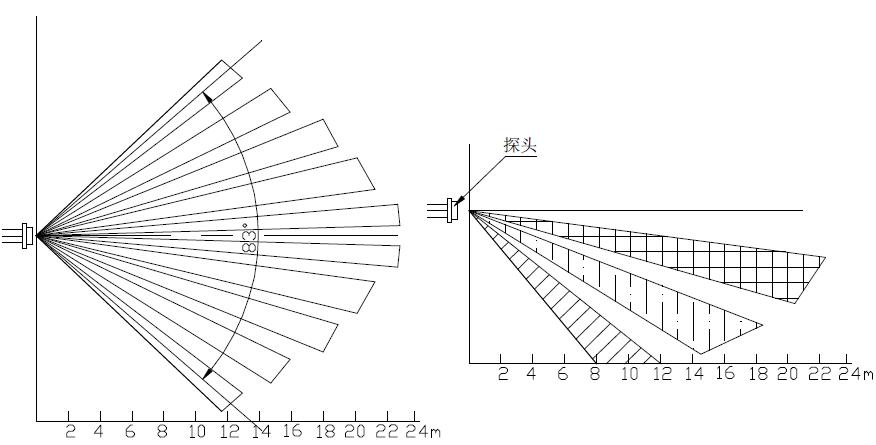

Detection range(unit=m)

Fresnel Optical Lens Binary Fresnel Diffractive Lens D7002 For Smart Home System



Application

Alarm system, protect the PIR sensor.
