φ5

PROD Model:φ5
Maximum Applied Voltage: the maximum voltage that can be continuously applied to a component in the dark
Dark Resistance: resistance value at 10 seconds after 10Lux illumination is turned off
Maximum Power Consumption: maximum power consumption when the ambient temperature is 25 ° C
Bright Resistance: after 2 hours of exposure with 400-600Lux light, the test value under 10Lux light of standard light source (color temperature 2856K)
γ Value: logarithm of the ratio of the standard resistance value at 10Lux illuminance to 100Lux illuminance
γ= Lg(R10/R100) /Lg (100/10) =Lg(R10/R100)

Inquire Now Next Product

Overview

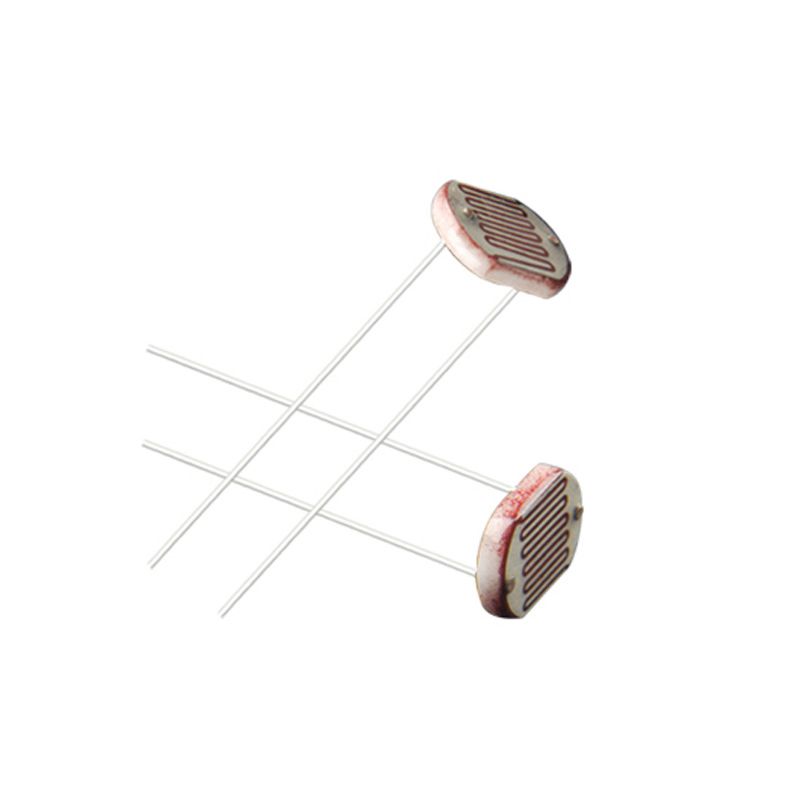

A photoresistor is a resistance made of a semiconductor material whose conductivity changes with the change of illuminance. This feature is used to make photoresistors of different shapes and light-receiving areas. Photoresistors are widely used in toys, lamps, cameras and other industries.

Feature

★ Epoxy encapsulation

★ Good reliability

★ Small size

★ High sensitivity

★ Fast response

★ Good spectral characteristics

Datasheet

Specification	Type	Maximum Voltage	Maximum power	Environmetal Temp.	Spectrumpeak value	Light resistance(10Lux)(KΩ)	Dark resistance(MΩ)	Response time(ms)
Specification	Type	Maximum Voltage	Maximum power	Environmetal Temp.	Spectrumpeak value	Light resistance(10Lux)(KΩ)	Dark resistance(MΩ)	Increase	Decrease
φ5series	GL5516	150	90	-30~+70℃	540	5- 10	0.5	30	30
	GL5528	150	100	-30~+70℃	540	10- 20	1	20	30
	GL5537-1	150	100	-30~+70℃	540	20- 30	2	20	30
	GL5537-2	150	100	-30~+70℃	540	30- 50	3	20	30
	GL5539	150	100	-30~+70℃	540	50- 100	5	20	30
	GL5549	150	100	-30~+70℃	540	100-200	10	20	30
	GL5606	150	100	-30~+70℃	560	4-7	0.5	30	30
	GL5616	150	100	-30~+70℃	560	5-10	0.8	30	30
	GL5626	150	100	-30~+70℃	560	10-20	2	20	30
	GL5637-1	150	100	-30~+70℃	560	20-30	3	20	30
	GL5637-2	150	100	-30~+70℃	560	30-50	4	20	30
	GL5639	150	100	-30~+70℃	560	50-100	8	20	30
	GL5649	150	100	-30~+70℃	560	100-200	15	20	30

Applications

The application including automatic machine, alarm system, light switch, toys.

FAQ

1. What is the main materials for CDS?

Cadmium sulfide, Cadmium selenide.

2. Packing type? TO-5.

3. What is the lead time?

3-5 days.
