Overview

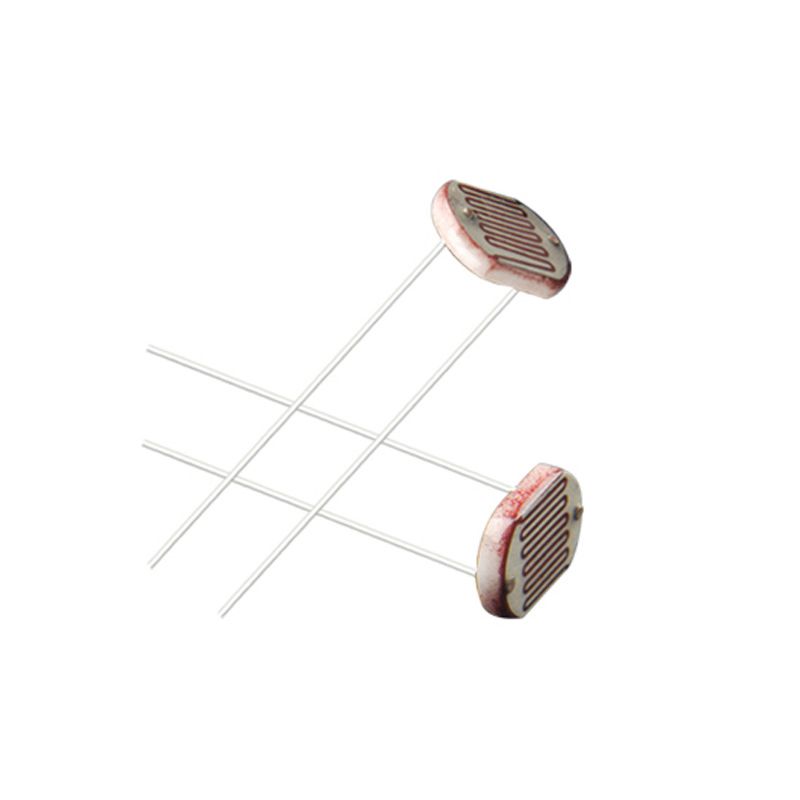

Light dependent resistor is made of semiconductor material. Also name LDR, photoconductor. The electric conductivity changs by the illuminance. The illuminance is more stronger, the value of the resistance will be more weaker. With this chareter, we can produce different size to satified different requirement. We have 5MM and 12MM series.
Feature
Coated with epoxy
Good reliability
Small volume
High sensitivity
Quick response
Good spectrum characteristic
Datasheet
| Specification | Type | Maximum Voltage | Maximum power | Environmental temperature | Spectrumpeak value | Light resistance(10Lux)(KΩ) | Dark resistance(MΩ) |  | Response time(ms) | Illuminance resistance characteristic | ||
| Increase | Decrease | |||||||||||
| D57series | D5717 | 150 | 90 | -30~ +70 | 540 | 5- 10 | 0.5 | 0.5 | 30 | 30 | 2 | |
| D5727 | 150 | 100 | -30~ +70 | 540 | 10- 20 | 1 | 0.6 | 20 | 30 | 3 | ||
| D5738-1 | 150 | 100 | -30~ +70 | 540 | 20- 30 | 2 | 0.6 | 20 | 30 | 4 | ||
| D5738-2 | 150 | 100 | -30~ +70 | 540 | 30- 50 | 3 | 0.7 | 20 | 30 | 4 | ||
| D5739 | 150 | 100 | -30~ +70 | 540 | 50- 100 | 5 | 0.8 | 20 | 30 | 5 | ||
| D5749 | 150 | 100 | -30~ +70 | 540 | 100- 200 | 10 | 0.9 | 20 | 30 | 6 | ||
Applications
Camera automation photometry
Photoelectric control
Indoor sunlight control
Annunciator
Industrial control
Optical control switch
FAQ
What is the testing conditions?
Max external voltage: Maximum voltage to be continuously given to component in the dark.
Max power consumption: Maximum power at the environmental temperature 25℃.
Light resistance Irradiate by 400-600Lux light for two hours, then test with 10Lux under standard light source A(as colour temperature 2856K).
Dark resistance Refer to the resistance value ten seconds after the 10Lux light is shut up.
