φ3

PROD Model:φ3
Maximum Applied Voltage: the maximum voltage that can be continuously applied to a component in the dark
Dark Resistance: resistance value at 10 seconds after 10Lux illumination is turned off
Maximum Power Consumption: maximum power consumption when the ambient temperature is 25 ° C
Bright Resistance: after 2 hours of exposure with 400-600Lux light, the test value under 10Lux light of standard light source (color temperature 2856K)
γ Value: logarithm of the ratio of the standard resistance value at 10Lux illuminance to 100Lux illuminance
γ= Lg(R10/R100) /Lg (100/10) =Lg(R10/R100)

Inquire Now Next Product

Overview

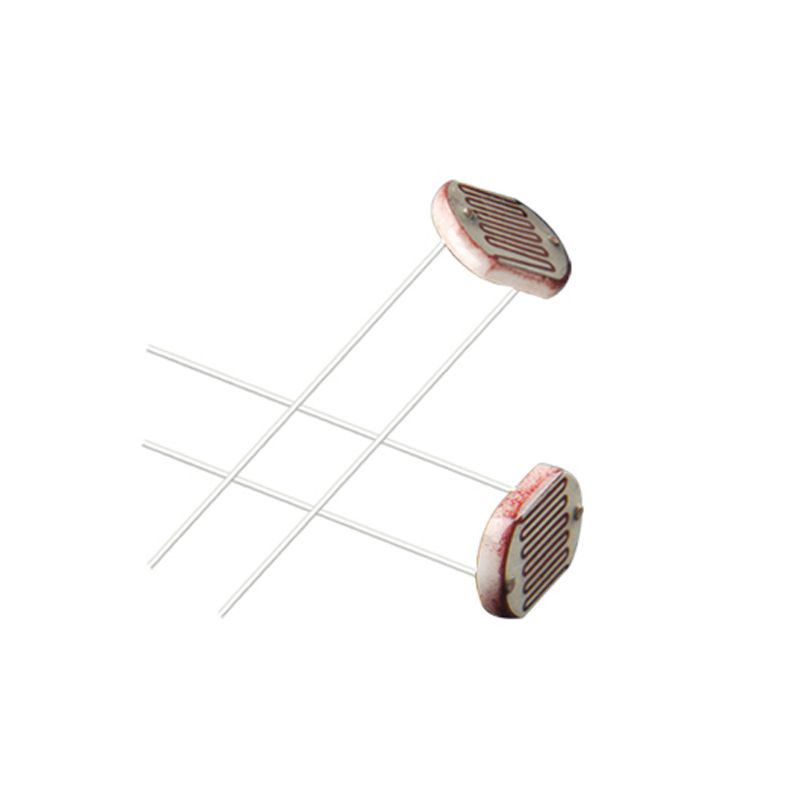

A photoresistor is a resistance made of a semiconductor material whose conductivity changes with the change of illuminance. This feature is used to make photoresistors of different shapes and light-receiving areas. Photoresistors are widely used in toys, lamps, cameras and other industries.

Feature

★ Epoxy encapsulation

★ Good reliability

★ Small size

★ High sensitivity

★ Fast response

★ Good spectral characteristics

Datasheet

Specification	Type	Maximum Voltage	Maximum power Consumption	Environmental Temp.	Spectrumpeak value	Light resistance(10Lux)(KΩ)	Dark resistance(MΩ)	Response time(ms)
Specification	Type	Maximum Voltage	Maximum power Consumption	Environmental Temp.	Spectrumpeak value	Light resistance(10Lux)(KΩ)	Dark resistance(MΩ)	Increase	Decrease
φ 3series	GL3516	100	50	-30~+70℃	540	5- 10	0.6	30	30
	GL3526	100	50	-30~+70℃	540	10- 20	1	30	30
	GL3537-1	100	50	-30~+70℃	540	20- 30	2	30	30
	GL3537-2	100	50	-30~+70℃	540	30- 50	3	30	30
	GL3547-1	100	50	-30~+70℃	540	50- 100	5	30	30
	GL3547-2	100	50	-30~+70℃	540	100- 200	10	30	30

Applications

They have a very simple structure and they are low cost and rugged devices.They are widely used in many different items of electronic equipment including photographic light meters, fire or smoke alarms as well as burglar alarms, and they also find uses as lighting controls for street lamps.

FAQ

1. What is the size for LDR?

φ3 series, φ4 series, φ5 series, φ7 series, φ10 series, φ12 series, φ20 series.

2. What is your production capitable?

5 million Pieces per Month

3. Which of the photoresistor's will be the best to allow an led to only come on in complete darkness

It depends on the circuit you intend to use.
