Home > Products > Visible Light Sensor > Photodiode > LS06- J

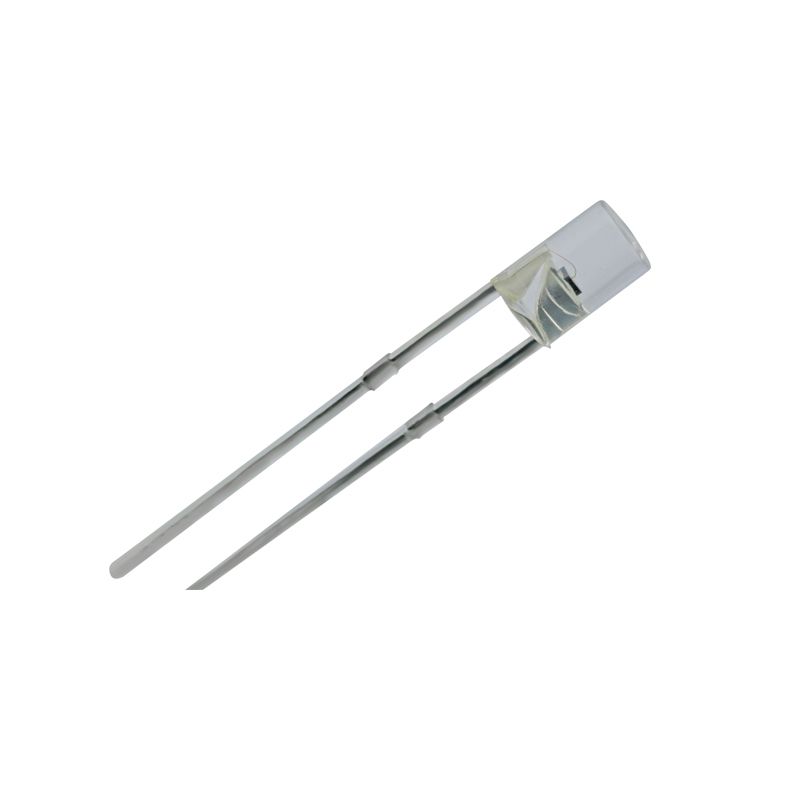

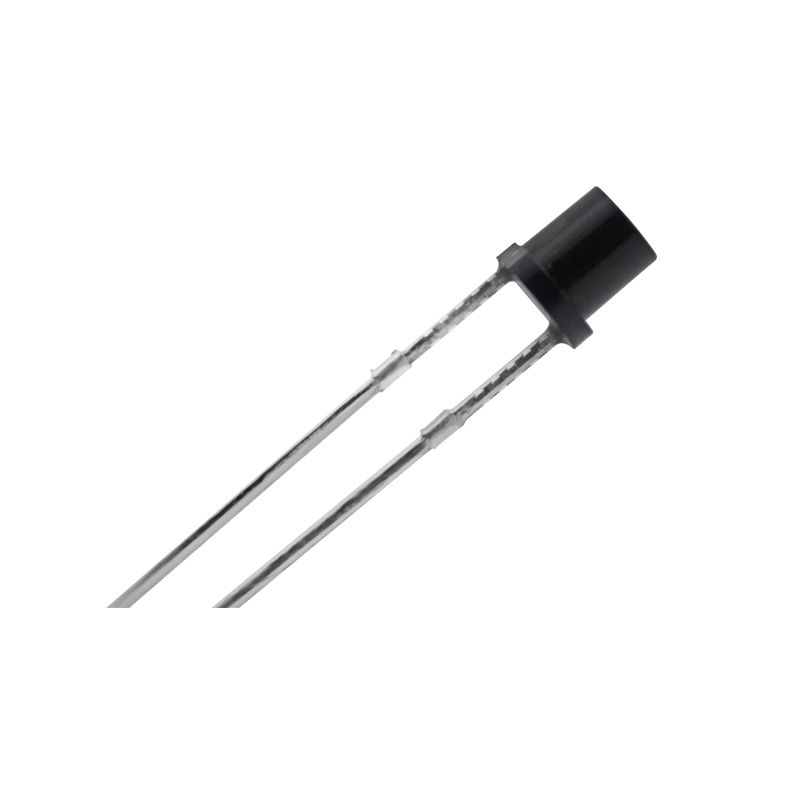

LS06- J

LS06- J

PROD Model:LS06-J
Appearance:φ5
Product Feature:low power consumption, high reliability and consistency
Photocurrent: VDD=5V, EV=10Lux 400-450uA
Sensitive Wavelength Peak:850nm
Sensitive Wavelength range:450-1nm
Power Consumption : 70mW
Recommend Supporting Resistor:high stable resistance
Inquire Now Next Product

Overview

1. Replace traditional photoresistors (CDS), free of cadmium, lead and other harmful substances，complies with EU ROHS standards.

2. Automatically adjust the backlight , such as :LCD,mobile phone,camera,computer camera etc.

3. Suitable for all kinds of light-controlled lighting products and toys, such as: night light, etc.

4. Suitable for all kinds of infrared monitoring products.


Feature

★ Peak sensitivity wavelength 850nm

★ Low power consumption

★ High reliability

★ Good batch consistency,completely solve the

    phenomenon of premature lamp start or poor

    consistency

★ Fast response speed,stable performance ，+85℃ high

    temperature/65％ high temperature aging 1000H

    starting point does not drift

★ Avilable in different form factors upon request,it is easy

    to install anywhere in the product


Datasheet

1. Maximum  rating (Ta = 25℃）

Parameter
SymbolRatingUnit
Collector-emitter voltageVCEO2-20V
Emitter-collector voltageVCEO5V
Power consumption PC70MW
Operating temperatureTopr-25~+85℃
Storage temperatureTstg-40~+100℃


2.Optoelectronic characteristics (Ta = 25℃) Note:The test light source adopts 2850K color temperature LED

ParametersymbolTest Condition MinTypicalMaxUnit
Light Current
IL(1)VDD=5V,EV=10LUX400410450μA
IL(2)VDD=5V,EV=50LUX~~~μA
IL(3)VDD=5V,EV=100LUX~~~μA
Dark CurrentICEOVDD=5V,EV=0LUX~~0.2μA
Photowavelength Peakλp       \
850

Photowavelength Rangeλp      \450~1050
Collector-emitter VoltageBvceoIC=100UA Ee=0mw/cm2~
70
Emitter-collector VoltageBvceoIE=10UA Ee=0mw/cm2~
30
Collector-emitter saturation voltageVce(sat)IC=2MA Ee=1mw/cm2~
0.4
Response Time
Opening TimeTRVCE=5V,IC=1MA RL=10KΩ20μs
Closing TimeTR20
