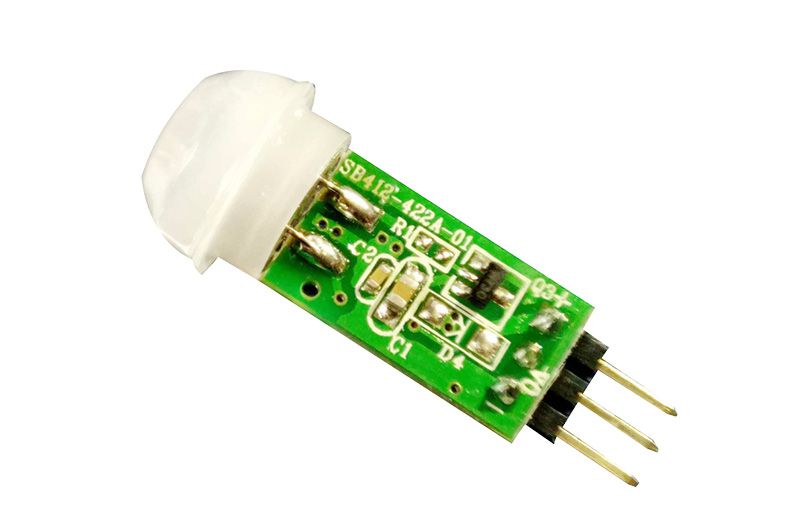

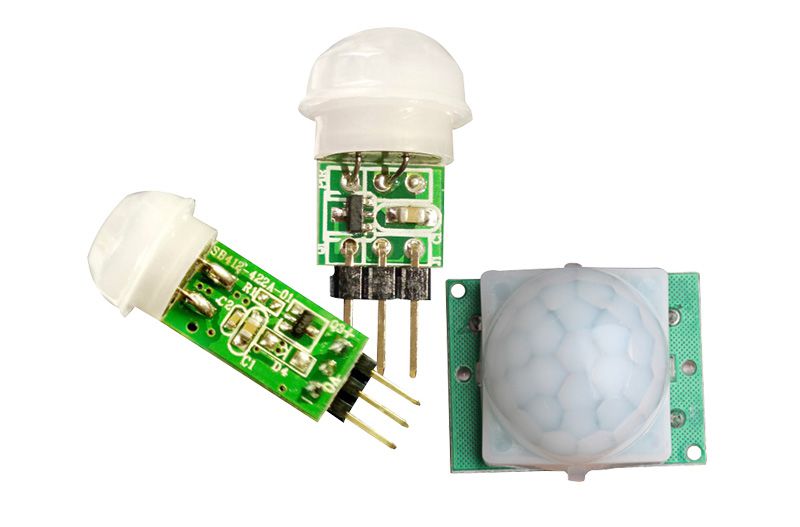

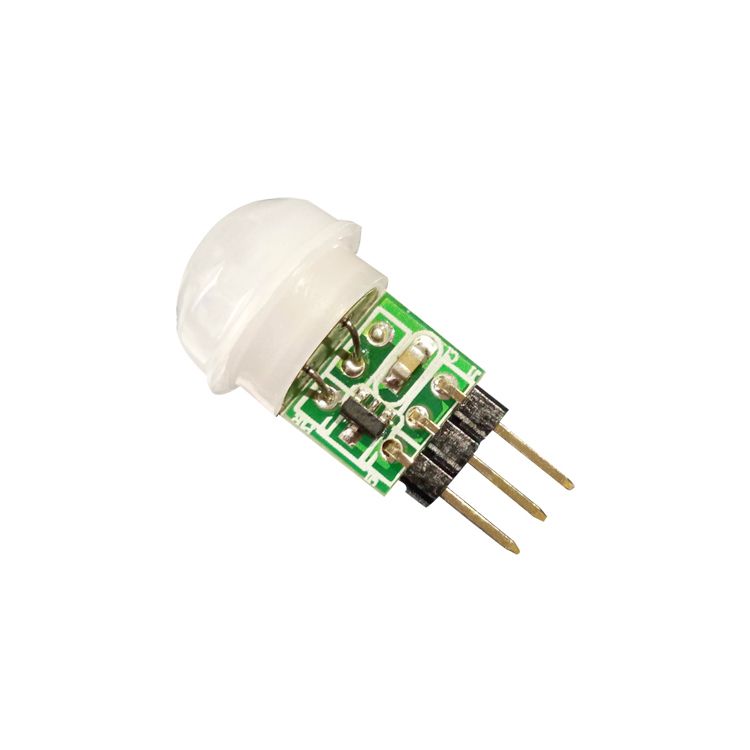

High Sensitivity Digital PIR Modlue for Light Control Lamp

Overview

PIR(Passive Infrared Detection) are used to detect motion of human movement. This version has a large lens which can support long range and wide angle. 2.54mm standard connector is easy to fix it anywhere. PIR motion sensor mudle are widely used in lighting, security system, etc.


Feature

1. IC integrated
2. Digital Signal Processing
3. Insensitive to RF interferenced
4. For Security Systems


Datasheet

Model NO.SB412
Size18*10mm
Supply CurrentDC3V~ 12V
Current Drain<20uA
Voltage OutputHigh level signal:3.0V, Standby output  is 0V
Delay timeDelay time adjustable
Operation Temperature-20℃~ 60℃
Infrared SensorDual element, low noise, high sensitivity
Light SensorNo CDS
TTL OutputTTL output can be directly connected to micro controller or logic device
SensitivityHigh Sensitivity
