Overview

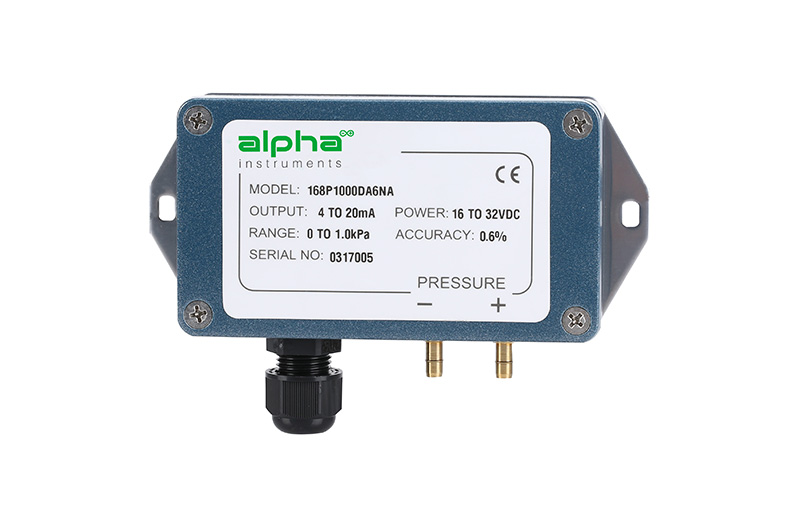

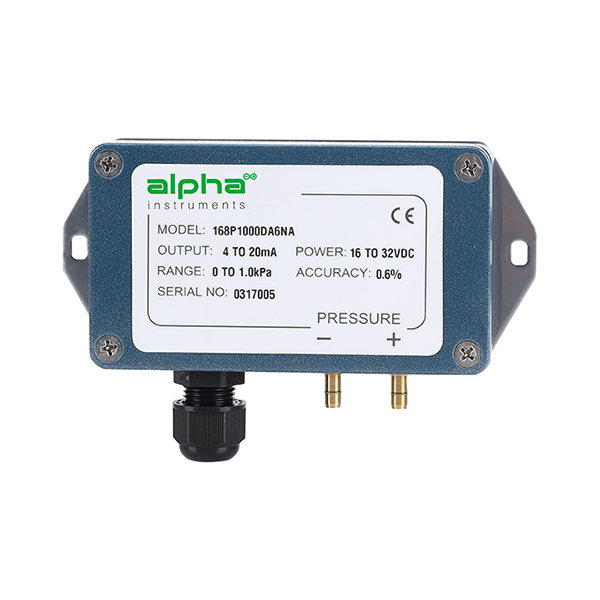

The core component of the Model 168 series differential pressure sensor/transmitter is a capacitive pressure sensor, which consists of a stainless steel diaphragm with a fixed electrode forming a capacitor whose value varies with pressure. Using the company's special patented technology carefully designed sensor sensors and unique detection circuit to ensure good temperature performance and long-term stability of the product.
The Model 168differential pressure sensor/transmitter can be used to measure differential or gauge pressure with outputs of 0-5V, 0-10V, 4-20mA, and can also be customized for other outputs. The accuracy of Model 168 was ±1.0%FS, 0.4%FS or 0.25%FS at room temperature. The temperature compensation ranges from 4 ℃ to 77℃, and the temperature effect is less than ±0.05%FS/℃.
Model 168 has excellent performance-price ratio, widely used in HVAC, environmental pollution control, clean engineering, medical instruments and equipment, oven pressurization and furnace pressure control, natural gas, gas pipe network monitoring, underground ventilation and power plant wind pressure monitoring and other fields.
Feature
★ The positive/negative pressure end can withstand at least 100kPa
overload without damage
★ With temperature compensation capacitive sensitive element, to
ensure the transmitter excellent movement State/static temperature
performance
★ Multiple pressure interfaces/output forms/installation modes are
optional
★ True zero output of voltage
★ Asymmetrical bidirectional differential pressure range is optional
★ Full protection of misconnection
★ Meet the CE standard
★ Environmental protection design, in line with ROHS standards
★ Minimum pressure range of 10Pa
Datasheet
| Parameter | Standard | Special selection | Special selection |
| Accuracy RSS*（under constant temperature） | ±1.0%FS | ±0.40%FS | ±0.25%FS |
nonlinearity（best fitting line） | ±0.97%FS | ±0.37%FS | ±0.24%FS |
| lag | ±0.20%FS | ±0.10%FS | ±0.05%FS |
| non-repeatability | ±0.10%FS | ±0.10%FS | ±0.05%FS |
| Temperature effect | |||
| Zero point/Full range offset(/℃) | ±0.05%FS | ±0.03%FS | ±0.02%FS |
| Compensation range | 4℃ to 77℃ | ||
| Maximum static pressure | 15PSI(100kPa) | ||
| Overload | Both positive and negative are 15PSI(100kPa) | ||
| Stability ratio | ±0.5% FS/YR | ||
| Preheat | 5 seconds to reach the performance specification | ||
| Installation position effect | When factory calibration, the sensor is placed vertically. In order to ensure accuracy, necessary fine tuning should be made when installing other positions at zero point | ||
| Environmental and mechanical parameters | |
| Operating temperature | -18℃ to 77℃ |
| Storage temperature | -40℃ to 85℃ |
| Electrical connection | Pluggable terminal with PG-9 or PG-7 cable locking device |
| Pressure connection | 3/16"、φ8、φ6.5 brass tower pressure connection(optional) |
| Output regulation | remove the terminal cover to fine-tune zero/full range |
| Pressure medium | Air or other non-conductive gas |
| Shell | Die cast aluminum (RoHS standard) |
| Weight | 330g |
| Installation | The installation size is shown in the attached figure 1. Two 4.2mm diameter mounting holes in the shell are provided with two M3 X 6 mounting screws. There are other options for installing the bottom plate. |
