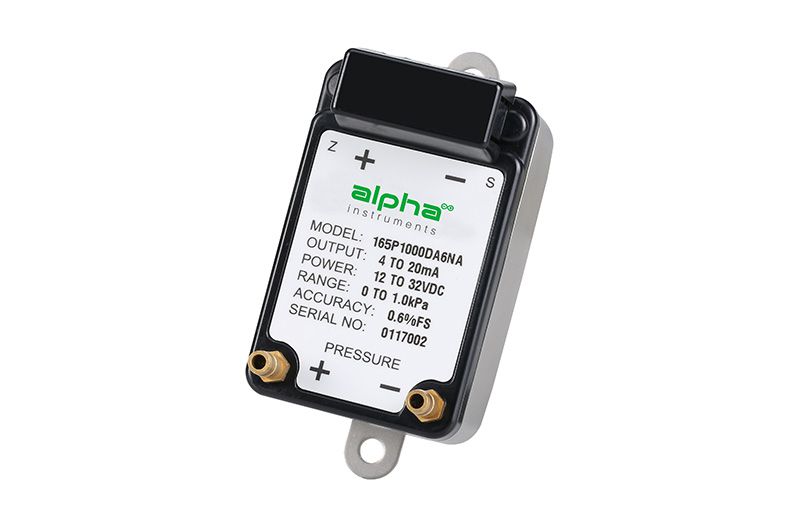

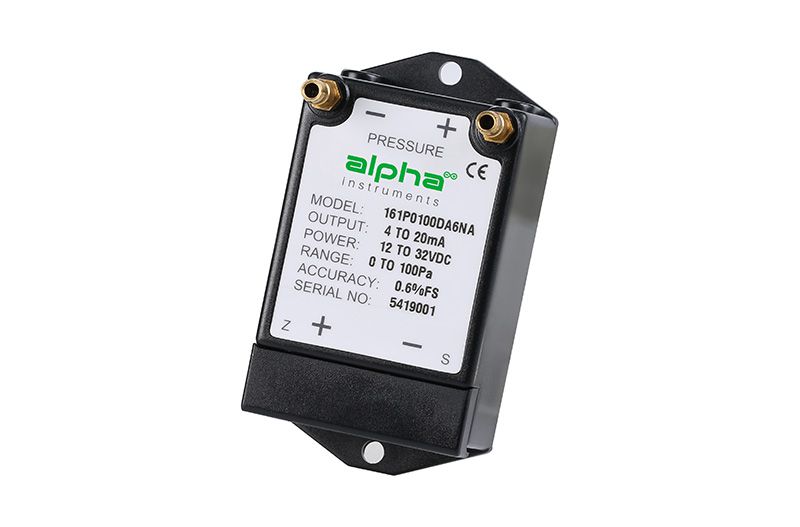

Model 165 Differential Pressure Transmitter

Overview

The core component of the Model 165 series differential pressure sensor/transmitter is a capacitive pressure sensor, which consists of a stainless steel diaphragm with a fixed electrode forming a capacitor whose value varies with pressure. Using the company's special patented technology carefully designed sensor sensors and unique detection circuit to ensure good temperature performance and long-term stability of the product.

The Model 165differential pressure sensor/transmitter can be used to measure differential or gauge pressure with outputs of 0-5V, 0-10V, 4-20mA, and can also be customized for other outputs. The accuracy of Model 165 was ±1.0%FS, 0.4%FS or 0.25%FS at room temperature. The temperature compensation ranges from 4 ℃ to 77℃, and the temperature effect is less than ±0.05%FS/℃.

Model 165has excellent performance-price ratio, widely used in HVAC, environmental pollution control, clean engineering, medical instruments and equipment, oven pressurization and furnace pressure control, natural gas, gas pipe network monitoring, underground ventilation and power plant wind pressure monitoring and other fields.

Feature

★ The positive/negative pressure end can withstand at least 100kPa

overload without damage

★ With temperature compensation capacitive sensitive element, to

ensure the transmitter excellent movement State/static temperature

performance

★ Multiple pressure interfaces/output forms/installation modes are

optional

★ True zero output of voltage

★ Asymmetrical bidirectional differential pressure range is optional

★ Full protection of misconnection

★ Meet the CE standard

★ Environmental protection design, in line with ROHS standards

★ Minimum pressure range of 10Pa

Datasheet

Parameter	Standard	Special selection	Special selection
*Accuracy RSS（under constant temperature）**	±1.0%FS	±0.40%FS	±0.25%FS
nonlinearity（best fitting line）	±0.97%FS	±0.37%FS	±0.24%FS
lag	±0.20%FS	±0.10%FS	±0.05%FS
non-repeatability	±0.10%FS	±0.10%FS	±0.05%FS
Temperature effect
Zero point/Full range offset(/℃)	±0.05%FS	±0.03%FS	±0.02%FS
Compensation range	4℃ to 77℃
Maximum static pressure	15PSI(100kPa)
Overload	Both positive and negative are 15PSI(100kPa)
Stability ratio	±0.5% FS/YR
Preheat	5 seconds to reach the performance specification
Installation position effect	When factory calibration, the sensor is placed vertically. In order to ensure accuracy, necessary fine tuning should be made when installing other positions at zero point

Environmental and mechanical parameters
Operating temperature	-18℃ to 77℃
Storage temperature	-40℃ to 85℃
Electrical connection	Wiring terminal
Pressure connection	3/16"、φ8、φ6.5 brass tower pressure connection(optional)
Output regulation	remove the terminal cover to fine-tune zero/full range
Pressure medium	Air or other non-conductive gas
Shell	Stainless steel/PC+ABSalloy，94V-0
Weight	165g
Installation	Refer to the product specification for outline dimensions as shown in Figure 1
