Overview

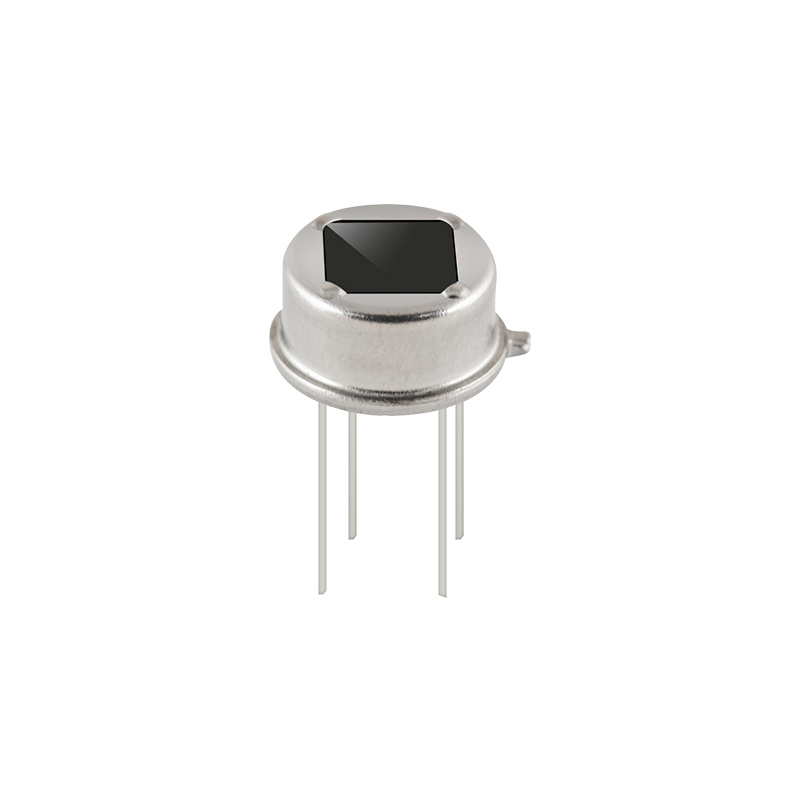

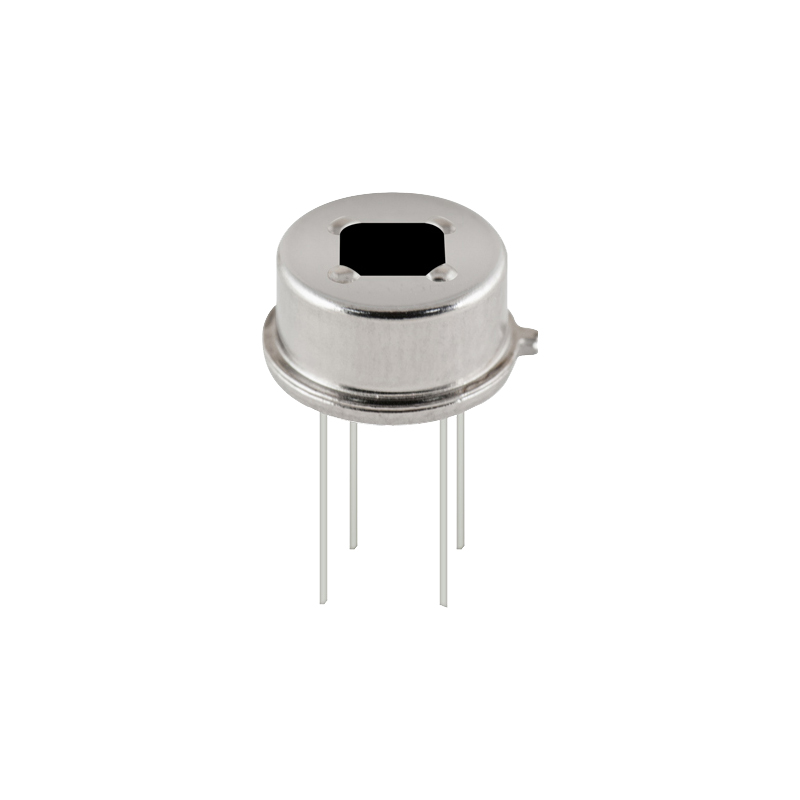

This is a type of PIR sensor which integrates AD chip and sensitive element in a hermetically sealed package.The sensitive element transmits the sensed human body movement signal to the AD chip, which outputs 16-bit digital signals through collection, filtering, etc., and realizes related functions through the peripheral circuit MCU.
Feature
16-bit digital signal output
Signal-wire serial data
Low power consumption
Datasheet
1.Technical data
Parameter | Symbol | Min | Max | Unit | Remarks |
Operating Temp | TST | -30 | 70 | ℃ | |
Current into any pin | Into | -100 | 100 | mA | |
Storage Temp | TST | -40 | 80 | ℃ |
2.Operating Conditions (T=25°C, Vdd=3V，unless stated otherwise)
Parameter | Symbol | Min | Type | Max | Unit | Remarks |
Regular voltage | VDD | 2.2 | 3.3 | 5.5 | V | |
Operation current | IDD | 5 | 10 | 20 | μA | |
ADC Resolution | 16 | Bits | ||||
Detective Wavelength | λ | 5 | 14 | um | ||
LPF cutoff frequency | 7 | Hz | ||||
HPF cutoff frequency | 0.44 | Hz |
