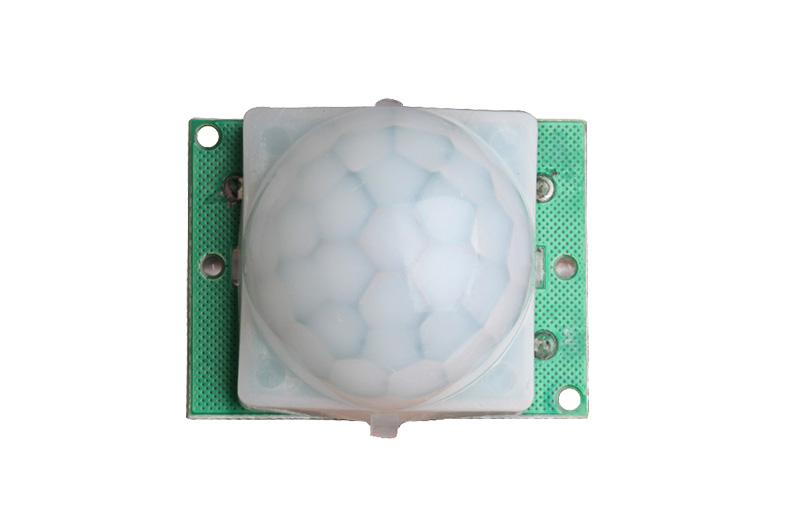

SB612 Human Motion Detector for Smart Toys from Senba Manufacturer

Overview

PIR sensor module developed for human body detection. An integrated PIR sensor combined with a fresnel lens which is mounted on a compact PCB, and limited components to form the module. Delay time, lux is adjustable. Customization is accepted.

Trigger mode: L unrepeatable triggered; H Repeatable triggered(default)


Feature

1. IC integrated
2. Digital Signal Processing
3. Insensitive to RF interferenced
4. For Security Systems


Datasheet

Model NO.SB612
Size32*24mm
Supply CurrentDC3V~ 15V
Current Drain<20uA
Voltage OutputInput:3V~ 15V Output:3.3V
Delay timeDelay time, Sensitivity, Lighting adjustable
Operation Temperature-20℃~ 60℃
Infrared SensorDual element, low noise, high sensitivity
Light SensorCds photocell
TTL OutputTTL output can be directly connected to micro controller or logic device
SensitivityHigh Sensitivity
