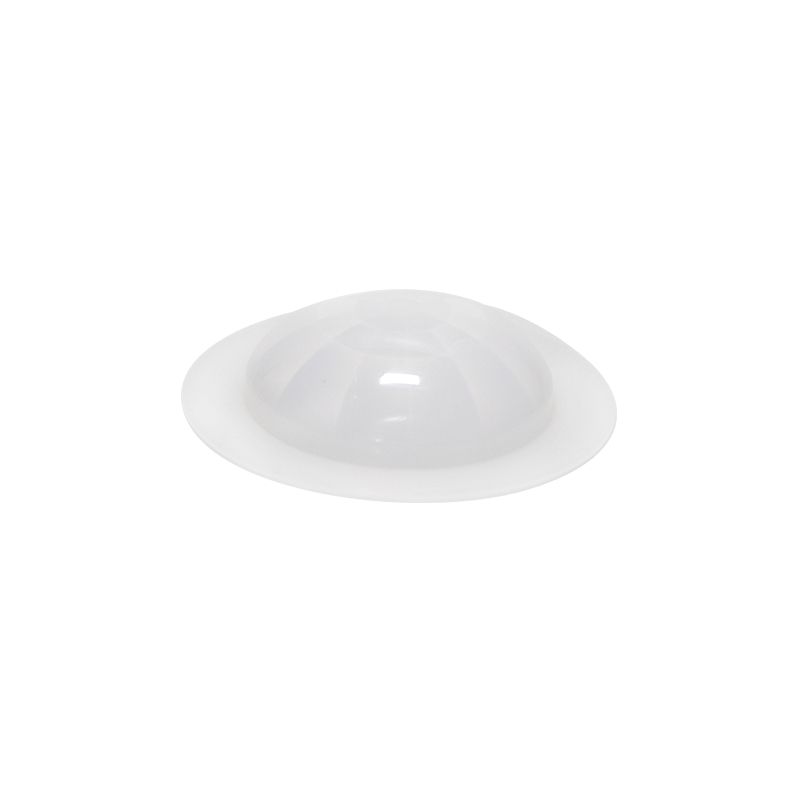

8605-5

PROD Model:8605-5
Material : HDPE
Overall Size:Grain diameter 34mm(φ47*11mm)
Focal Length:15mm
Detectable Distance:≥10m(installation height 2.5m)
Viewing Angle:140°
Color : primary color 、black、 milky(Color customization is acceptable)

Overview

Widely used in human body induction switch, alarm, infrared thermometer and infrared imaging and other aspects. Can provide users with different induction Angle, induction distance, size, test ratio. Fresnel lens action: one is focusing action; Second, the detection area is divided into a number of bright areas and dark areas, so that the moving objects entering the detection area can generate changes in the form of temperature changes on the PIR(passive infrared detector).

Feature

Ceiling light

Intelligent sensor

Datasheet

PROD Model8605-5
Material HDPE
Overall sizeGrain diameter 34mm(φ47*11mm)
Focal length15mm
Detectable distance≥10m(installation height 2.5m)
Viewing angle140°
Colorprimary color 、black、 milky(Color customization is acceptable)

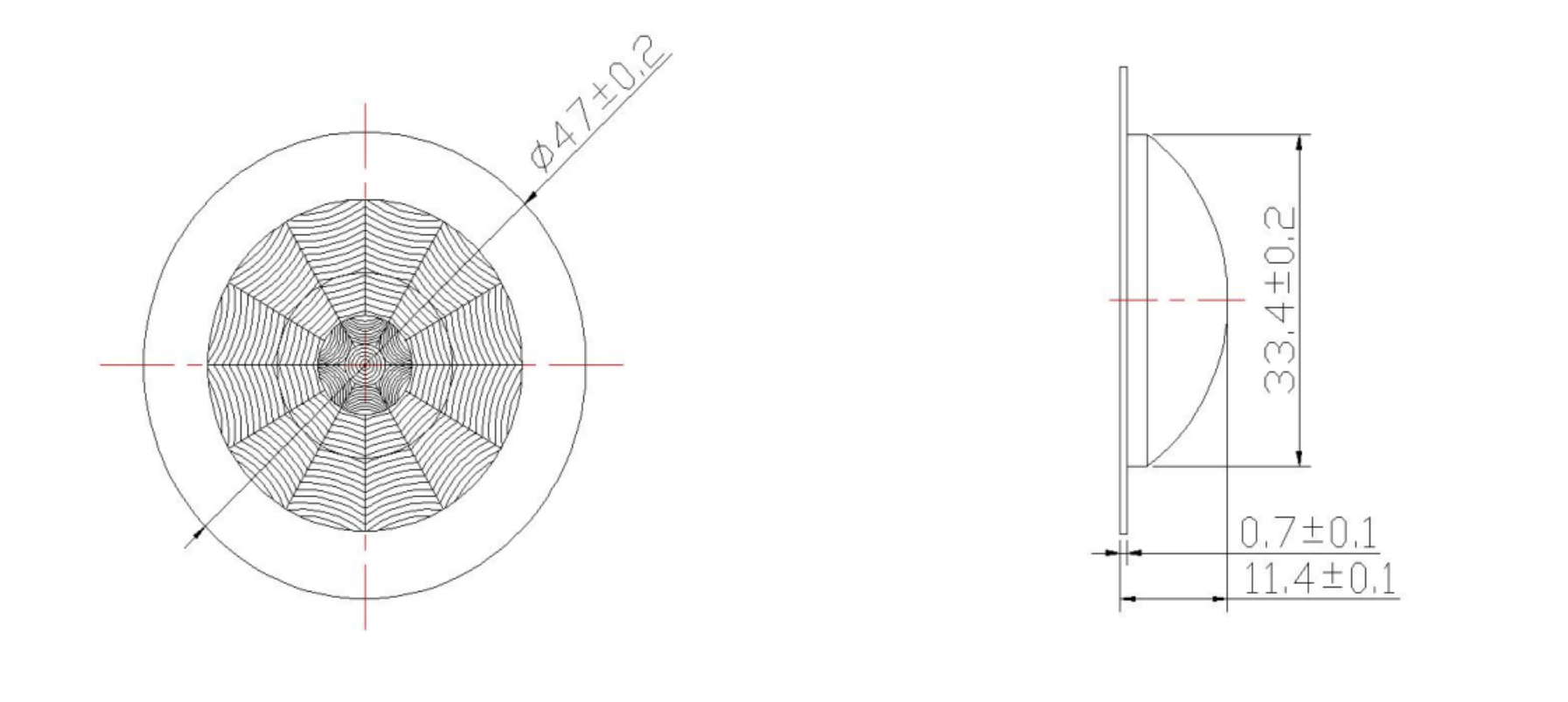

Dimension (Unit=mm)

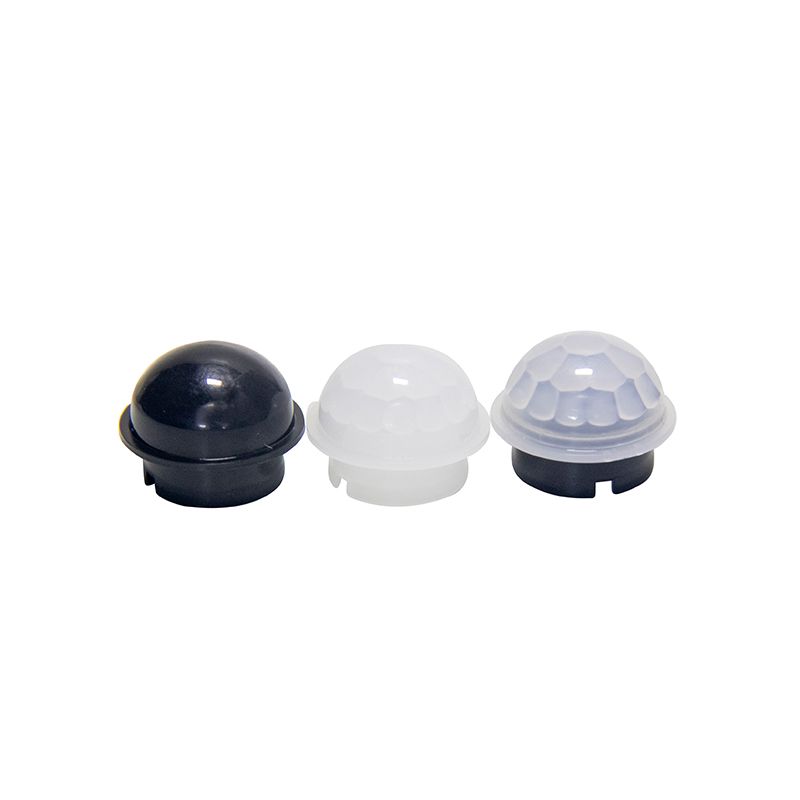

Related Products
