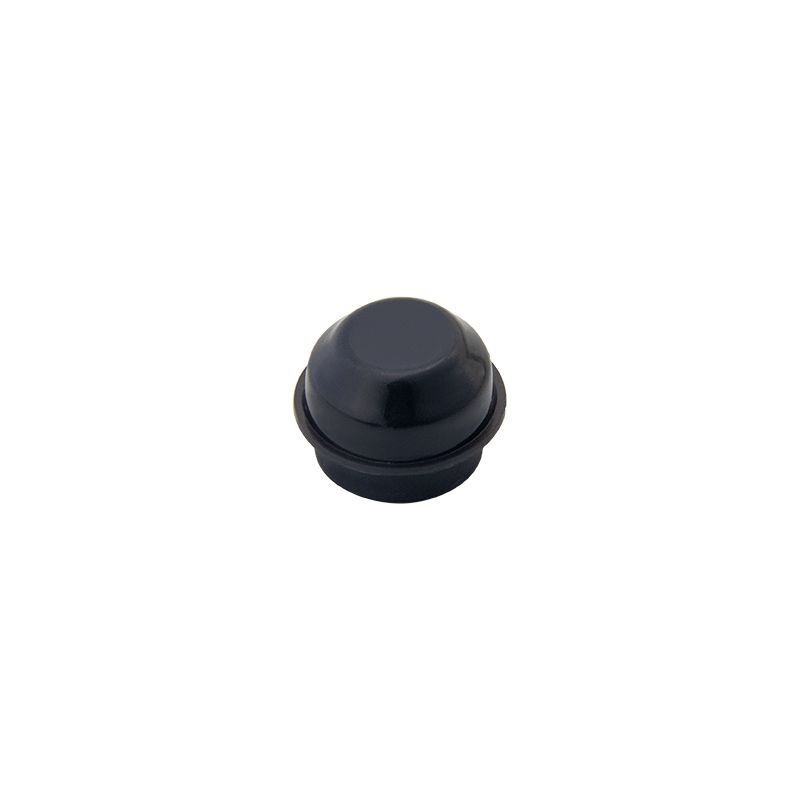

SB-F-01

Fresnel Lens

PROD Model:SB-F-01

Material : HDPE

Overall Size:Grain diameter 12.5mm(φ14*10.8mm)

Focal Length:6mm

Detectable Distance:≥6m

Viewing Angle:120°

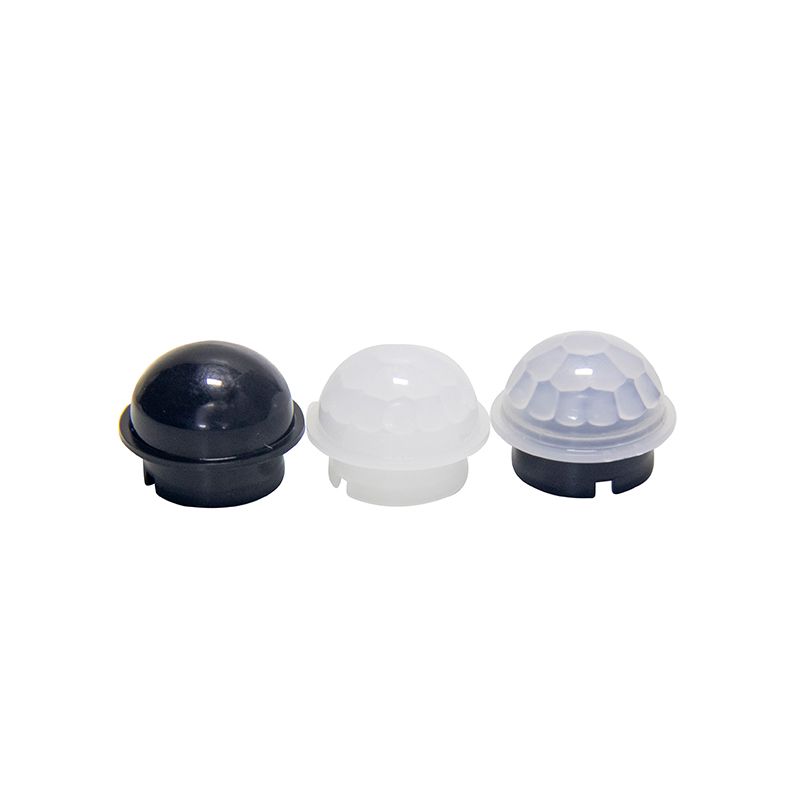

Color : primary color 、black、 milky(Color customization is acceptable)

General Description

Widely used in human body induction switch, alarm, infrared thermometer
and infrared imaging and other aspects. Can provide users with different
induction Angle, induction distance, size, test ratio. Fresnel lens
action: one is focusing action; Second, the detection area is divided
into a number of bright areas and dark areas, so that the moving objects
entering the detection area can generate changes in the form of
temperature changes on the PIR(passive infrared detector).

Features

Small night light

Cabinet light

Smart table lamp

Technical Data
PROD Model SB-F-01
Material
HDPE
Overall sizeGrain diameter 12.5mm(φ14*10.8mm)
Focal length6 5mm
Detectable distance ≥6m
Viewing angle120°
Colorprimary color 、black、 milky(Color customization is acceptable)

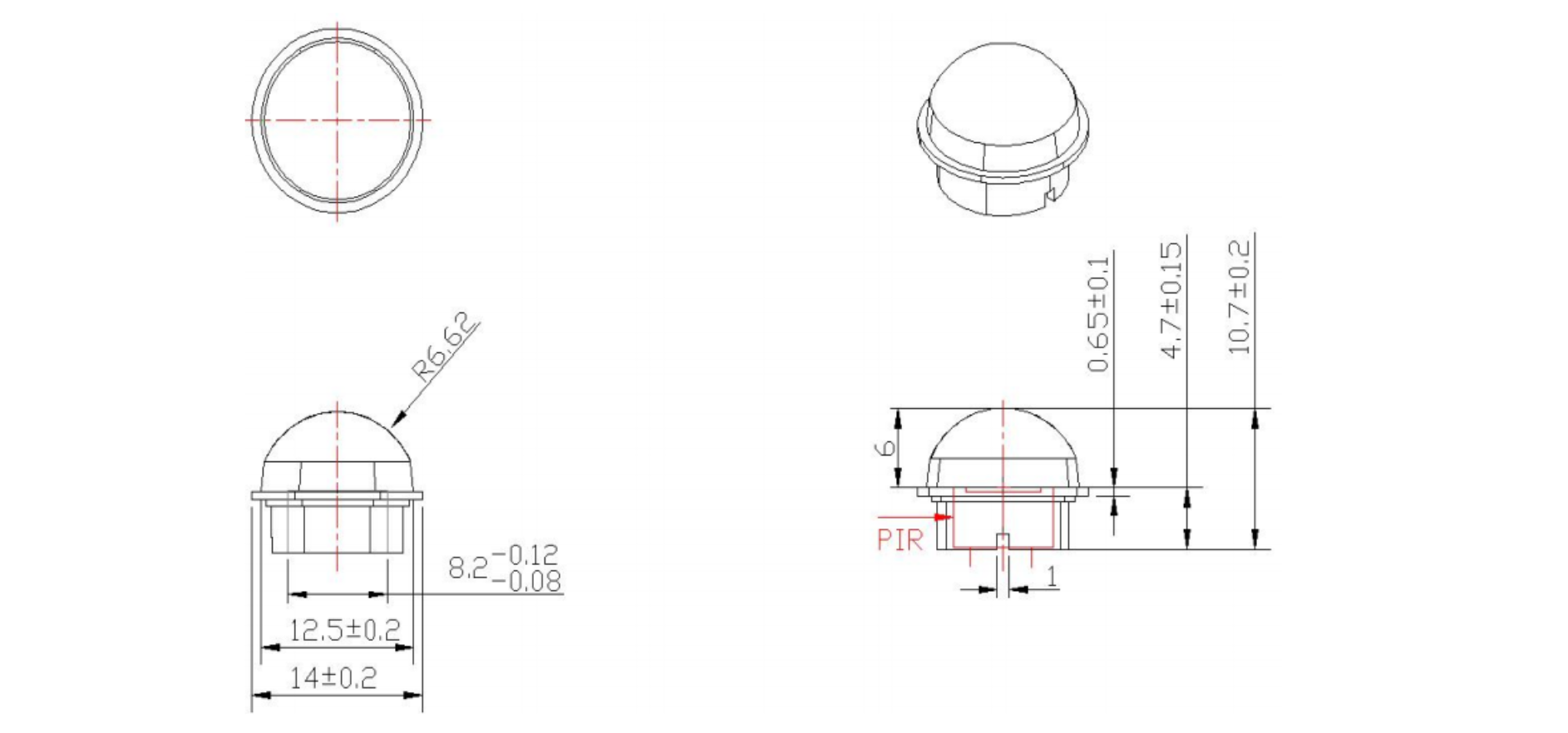

Dimension (Unit=mm)
