Infrared Filter

Infrared Filter

Home > Products > Infrared Filter

4.26μm

Infrared Filter

Center wavelength: 4260±50nm  T>80%

Half width:  180±20nm

Cut-off band except passband: 1-11um  Tave<0.5%

Substrate: Silicon

Diameter: 100.00mm±0.50mm

Thickness: 0.5mm ± 0.05mm

(Base 、diameter、 thickness can be customized

General Description

CO2

Features
Technical Data

PROD Model

Cutoff Wavelength(um)

Transmittance

Base

Cutoff

Diameter(mm)
Thickness(mm)Gas application

Range(nm)

Average Value(%)

Cutoff Depth(%)

NBP4260-180nm

1-11um

42600±50nm

T>80%

Silicon、germanium sapphire and so on

Tave<0.5%

100±0.5mm0.5±0.05mmCO2

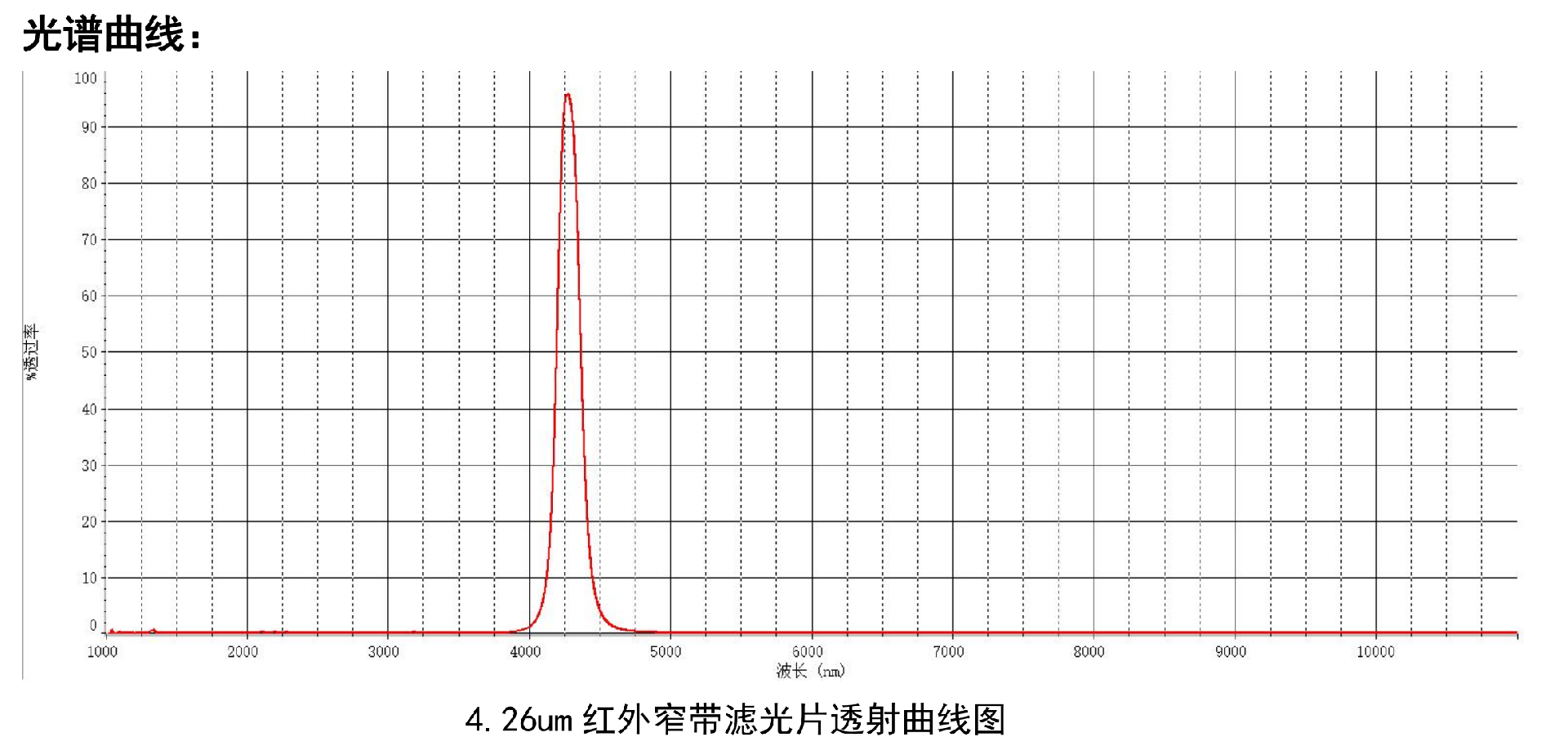

Product spectrogram
