5.78μm

Infrared Filter

Center wavelength: 5780±50nm  T>75%

Half width:180±20nm

Cut-off band except passband: 1-11um  Tave<0.5%

Substrate: Silicon

Diameter: 100.00mm±0.50mm

Thickness: 0.5mm ± 0.05mm

(Base 、diameter、 thickness can be customized)

General Description

5.78μm

Features

5.78μm

Technical Data

PROD Model

Cutoff Wavelength(um)

Transmittance

Base

Cutoff

Diameter(mm)
Thickness(mm)Gas application

Range(nm)

Average Value(%)

Cutoff Depth(%)

NBP5780-180nm

1-11um

5780±50nm

T>75%

Silicon、germanium sapphire and so on

Tave<0.5%

100±0.5mm0.5±0.05mmNO

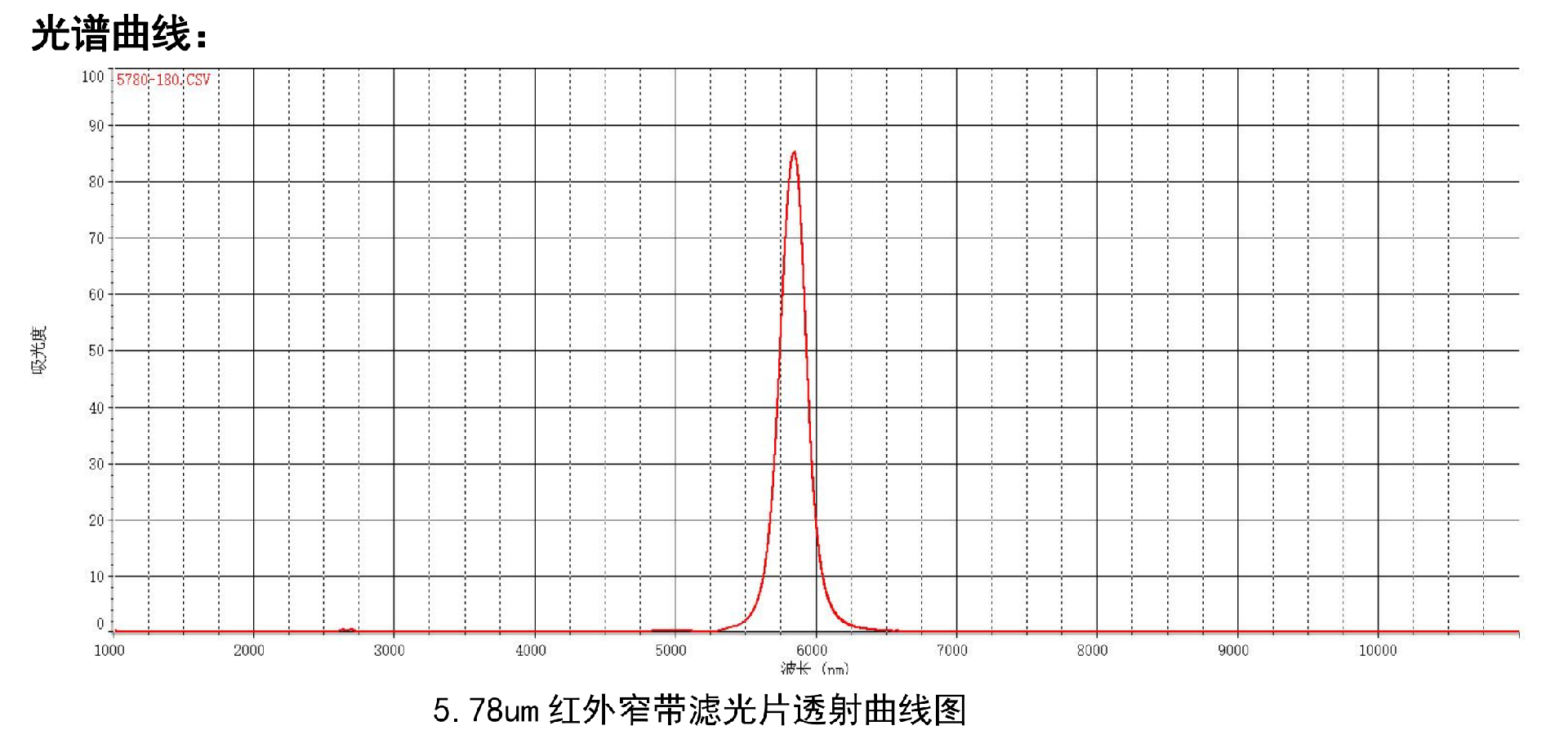

Product spectrogram
