SMD 1206-30

SMD 1206-30 Product Introduction

• 1. Replace traditional photoresistors (CDS), free of cadmium, lead and other harmful substances，complies with EU ROHS standards.

• 2. Automatically adjust the backlight , such as :LCD,mobile phone,camera,computer camera etc.


• 3. Suitable for all kinds of light-controlled lighting products and toys, such as: night light, etc.

• 4. Suitable for all kinds of infrared monitoring products.


SMD 1206-30 Product Features

• Peak sensitivity wavelength 850nm

• Low power consumption

• High reliability

• Good batch consistency,completely solve the phenomenon of premature lamp start or poor consistency

• Fast response speed,stable performance ，+85℃ high temperature/65％ high temperature aging 1000H starting point does not drift

• Avilable in different form factors upon request,it is easy to install anywhere in the product

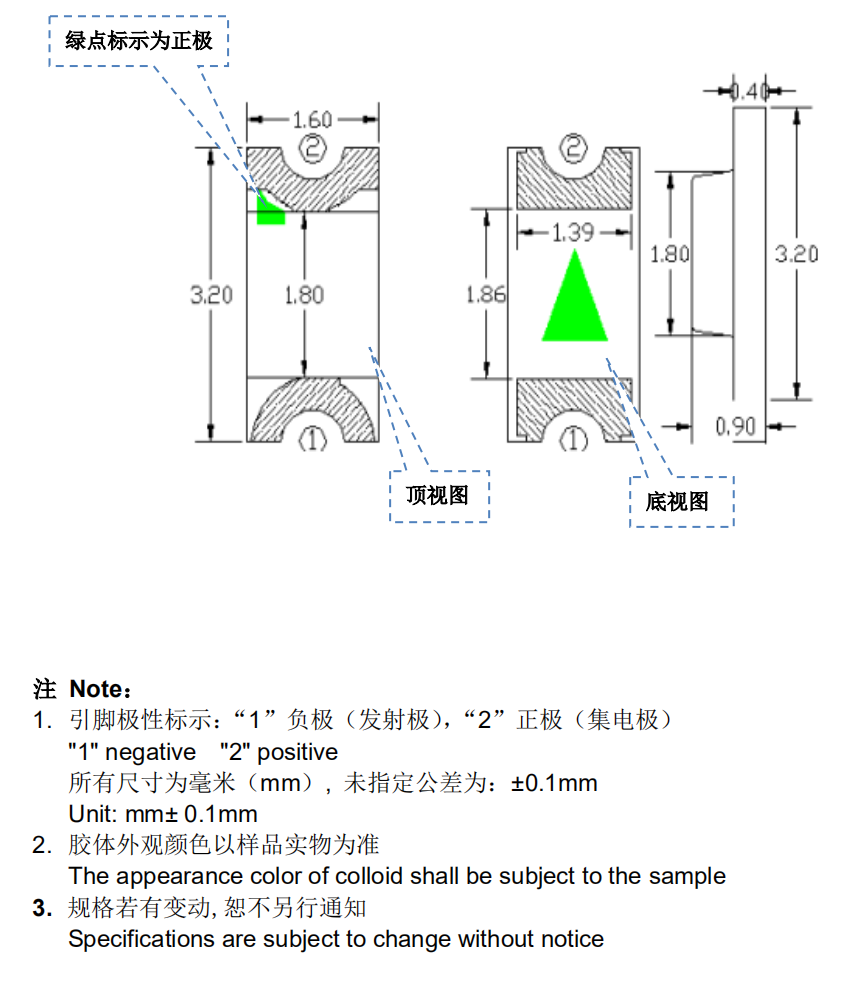

SMD 1206-30 Technical Data

1. Maximum rating (Ta = 25℃)

Parameter	Symbol	Rating	Unit
Collector-emitter voltage	VCEO	20	V
Emitter-collector voltage	VCEO	5	V
Power consumption	PC	70	MW
Operating temperature	Topr	-25~+85	℃
Storage temperature	Tstg	-40~+100	℃

2. Optoelectronic characteristics (Ta = 25℃)
Note: The test light source adopts 2850K color temperature LED

Parameter	Symbol	Test Condition	Min	Typical	Max	Unit
Light Current	IL(1)	VDD=5V, EV=10LUX	18	25	40	μA
	IL(2)	VDD=5V, EV=50LUX	~	80	~	μA
	IL(3)	VDD=5V, EV=100LUX	~	220	~	μA
Dark Current	ICEO	VDD=5V, EV=0LUX	~	~	0.2	μA
Photowavelength Peak	λp			850
Photowavelength Range	λp		450	~	1050
Collector-emitter Voltage	Bvceo	IC=100μA Ee=0mw/cm²	~		70
Emitter-collector Voltage	Bvceo	IE=10μA Ee=0mw/cm²	~		30
Collector-emitter saturation voltage	Vce(sat)	IC=2mA Ee=1mw/cm²	~		0.4
Response Time	Opening Time	VCE=5V, IC=1mA, RL=10KΩ	10			μs
	Closing Time	VCE=5V, IC=1mA, RL=10KΩ	15			μs
