Linear optocoupler
Pure resistor and non-polarity output
Wide range of analog linear resistance, "on" at the low resistance.
"off" at the high resistance.
Simple circuit configuration suitable for DC and AC use
Input to output isolation, and low distortion coupling
The LLI‑2203 is a linear optocoupler developed by Senba Sensing. The LLI‑2203 converts changes in input current into corresponding variations in resistance using an LED paired with a light‑sensitive element. The LLI‑2203 operates as a current‑input‑controlled, non‑polarized resistance output device. The LLI‑2203 is commonly used in light‑sensitive circuits, analog signal isolation, and applications requiring current‑to‑resistance conversion.
Pure resistor and non-polarity output.
Wide range of analog liner resistance, "on" at the low resistance. "off" at the high resistance.
Simple circuit configuration suitable for DC and AC use.
Input to output isolation, and low distortion coupling.
| Type | LLI-2203 Series |

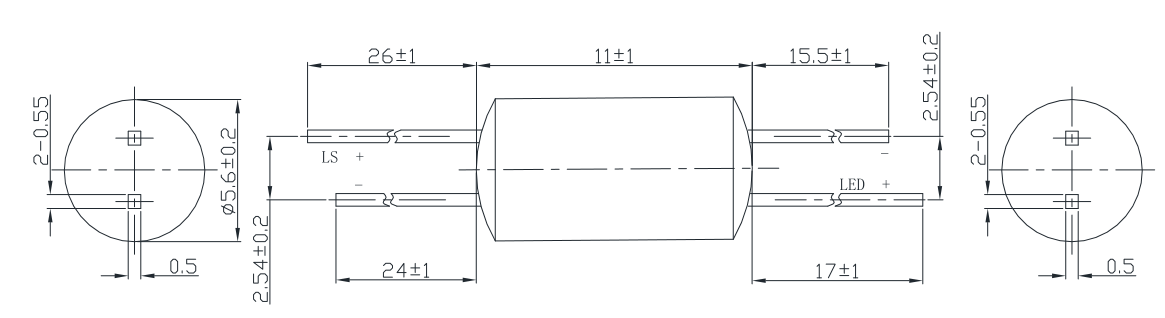

| Package | Cylindrical double-row inline |
| Forward voltage (input diode) Vf | Temp.25℃, relative humidity 48%-52% |
| Forward current (input diode) IF | 1.8-2.2Vdc |
| Reverse leakage current (input diode) Ir | 0-10mA |
| Reverse Voltage (input diode) VR | vr=5Vdc, max 10μA |
| DC-coupling capacitors | 5Vdc |
| Output voltage | <5pF |
| Enter the trigger current | 5Vdc, max 30Vdc |
| Typical | 0.1mA |
| Response time | <2.5ms |
| Operating frequency | <300KHZ |
| Maximum power consumption | 100mW |
| Operating Temp. | -25~+70℃ |
| Storage Temp. | -30~+80℃ |
| Anti-static rating | 2000V |
