TO-39 Package
High Sensitivity
NTC Thermistor Compensation
Fast Response

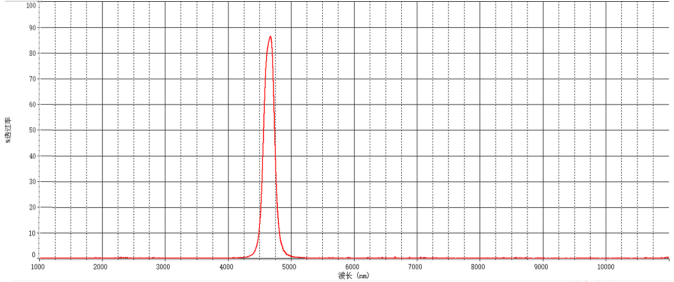

4.26μm, 3.91μm Narrowband Filter
TO-39 Package
High Sensitivity
NTC Thermistor Compensation
Fast Response
4.26μm, 3.91μm Narrowband Filter
TO-39 Package
High Sensitivity
NTC Thermistor Compensation
Fast Response
4.26μm, 3.91μm Narrowband Filter
Parameter |
Min. |
Typ. |
Max. |
Unit |
Conditions |
Chip size |
1.1×1.1 |
mm2 |
|||
Sensitive area |
0.35×0.35 |
mm2 |
|||
Thermopile resistance |
80 |
98 |
115 |
KΩ |
Temp=25℃ |
Noise voltage |
36±2 |
nV/Hz1/2 |
Temp=25℃ |
||
NEP |
0.23 |
nW/Hz1/2 |
Blackbody=500K,1Hz@25℃ |
||
Responsivity |
134 |
164 |
194 |
V/W |
Blackbody=500K,1Hz@25℃ |
Temp. coefficient of resistance |
0.06 |
%/℃ |
Temp=25℃～75℃ |
||
Time constant |
≤13 |
ms |
|||
Specific detectivity |
1.51×108 |
cmHz1/2/W |
Blackbody=500K,1Hz@25℃ |
||
NTC Resistance |
100±3% |
KΩ |
25℃ |
||
NTC β |
3950±1% |
K |
25/50℃ |
||
