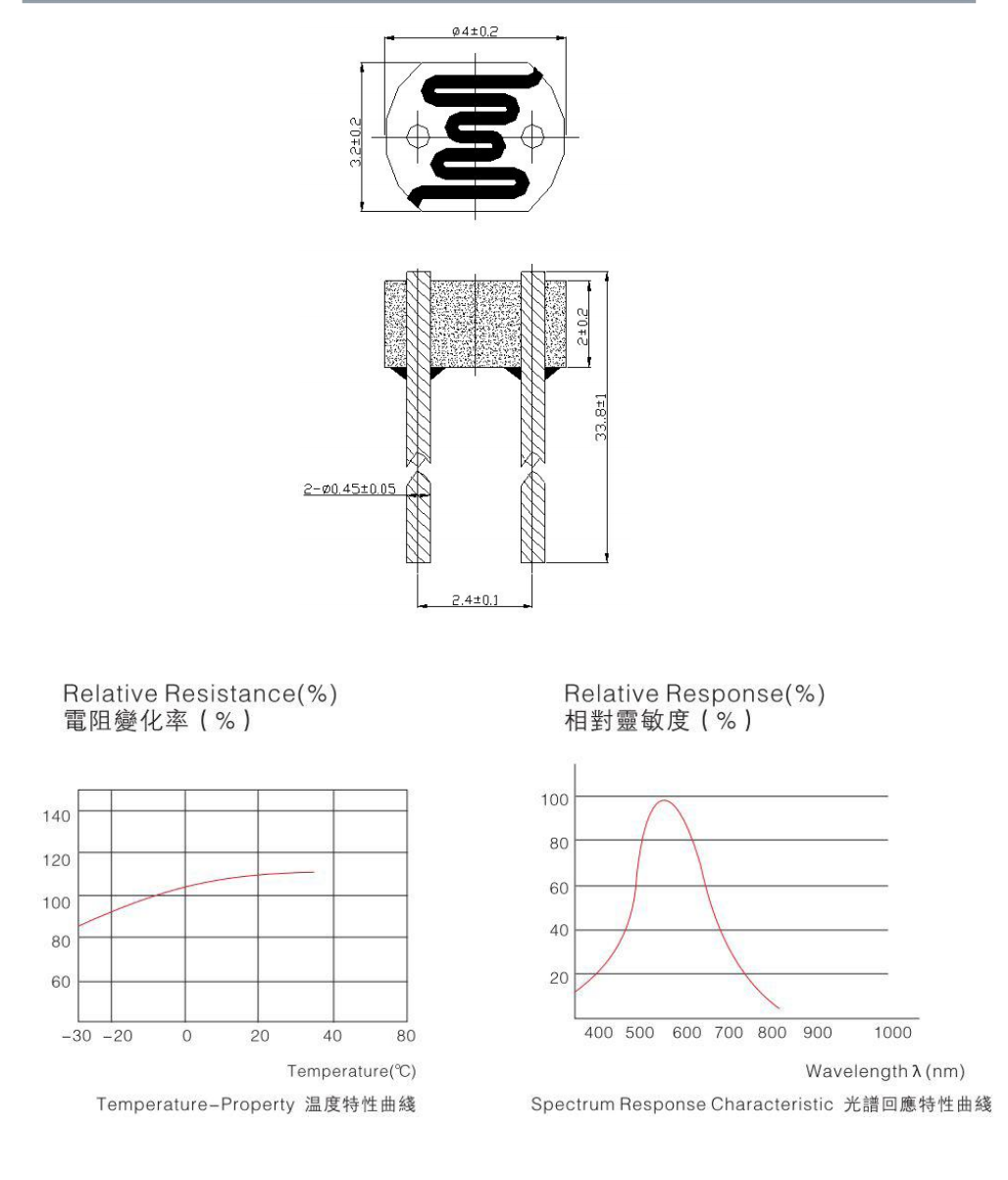

PROD Model:φ4
Maximum Applied Voltage: the maximum voltage that can be continuously applied to a component in the dark
Dark Resistance: resistance value at 10 seconds after 10Lux illumination is turned off
Maximum Power Consumption: maximum power consumption when the ambient temperature is 25 ° C
Bright Resistance: after 2 hours of exposure with 400-600Lux light, the
test value under 10Lux light of standard light source (color temperature
2856K)
γ Value: logarithm of the ratio of the standard resistance value at 10Lux illuminance to 100Lux illuminance
γ= Lg(R10/R100) /Lg (100/10) =Lg(R10/R100)
Epoxy encapsulation
Good reliability
Small size
High sensitivity
Fast response
Good spectral characteristics
Epoxy encapsulation
Good reliability
Small size
High sensitivity
Fast response
Good spectral characteristics
Applications
Camera shutter control
LDRs can be used to control the shutter speed on a camera. The LDR would be used to measure the light intensity which then adjusts the camera shutter speed to the appropriate level.
FAQ
1. What is the size for LDR?
φ3 series, φ4 series, φ5 series, φ7 series, φ10 series, φ12 series, φ20 series.
2. What is your production capitable?
5 million Pieces per Month
| Specification | Type | Maximum Voltage | Maximum power | Environmental Temp. | Spectrumpeak value | Light resistance(10Lux)(KΩ) | Dark resistance(MΩ) | Response time(ms) | |
| Increase | Decrease | ||||||||
| Φ4 series | GL4516 | 150 | 50 | -30~+70℃ | 540 | 5- 10 | 0.6 | 30 | 30 |
| GL4526 | 150 | 50 | -30~+70℃ | 540 | 10- 20 | 1 | 30 | 30 | |
| GL4537-1 | 150 | 50 | -30~+70℃ | 540 | 20- 30 | 2 | 30 | 30 | |
| GL4537-2 | 150 | 50 | -30~+70℃ | 540 | 30- 50 | 3 | 30 | 30 | |
| GL4548-1 | 150 | 50 | -30~+70℃ | 540 | 50- 100 | 5 | 30 | 30 | |
| GL4548-2 | 150 | 50 | -30~+70℃ | 540 | 100- 200 | 10 | 30 | 30 | |
