N0803-32

N0803-32 Product Introduction

The N0803‑32 Fresnel lenses are optical components developed by Senba Sensing. The N0803‑32 lenses are widely used in human body sensing switches, alarms, infrared thermometers, and infrared imaging systems. They are available in various sensing angles, detection distances, sizes, and test ratios to accommodate diverse application requirements.

N0803-32 Product Features

• Smart panel


• Small night light

• Smart door lock

N0803-32 Technical Data

Model Number	N0803-32
Material	HDPE
Overall size	14 mm
Focal length	6mm
Detectable distance	5m
Viewing angle	120°
Color	primary color, black, milky (Color customization is acceptable)

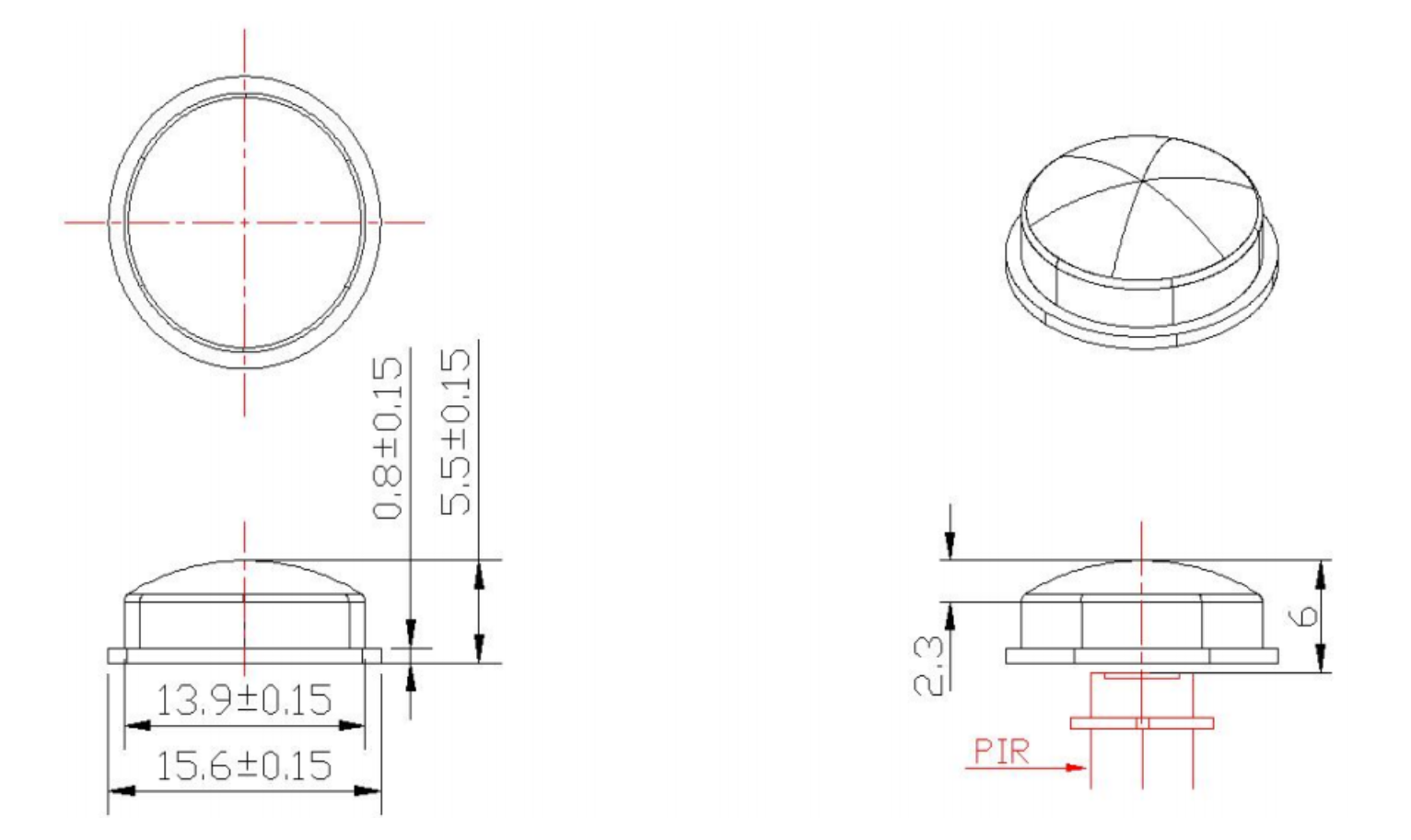

Dimension (Unit=mm)
