PROD Model:SB-F-08
Material : HDPE
Overall Size:Grain diameter 9.9mm(φ12*9.8mm)
Focal Length:5mm
Detectable Distance:≥5m
Viewing Angle:120°
Color : primary color 、black、 milky(Color customization is acceptable)
Fresnel lenses are widely used in human body sensing switches,
alarms, infrared thermometers, and infrared imaging systems. They are
available in various sensing angles, detection distances, sizes, and
test ratios to meet diverse user requirements.
Smart panel
Small night light
Smart door lock
| PROD Model | SB-F-08 |
| Material | HDPE |
| Overall size | Grain diameter 9.9mm(φ12*9.8mm) |
| Focal length | 5mm |
| Detectable distance | ≥5m |
| Viewing angle | 120° |
| Color | primary color 、black、 milky(Color customization is acceptable) |

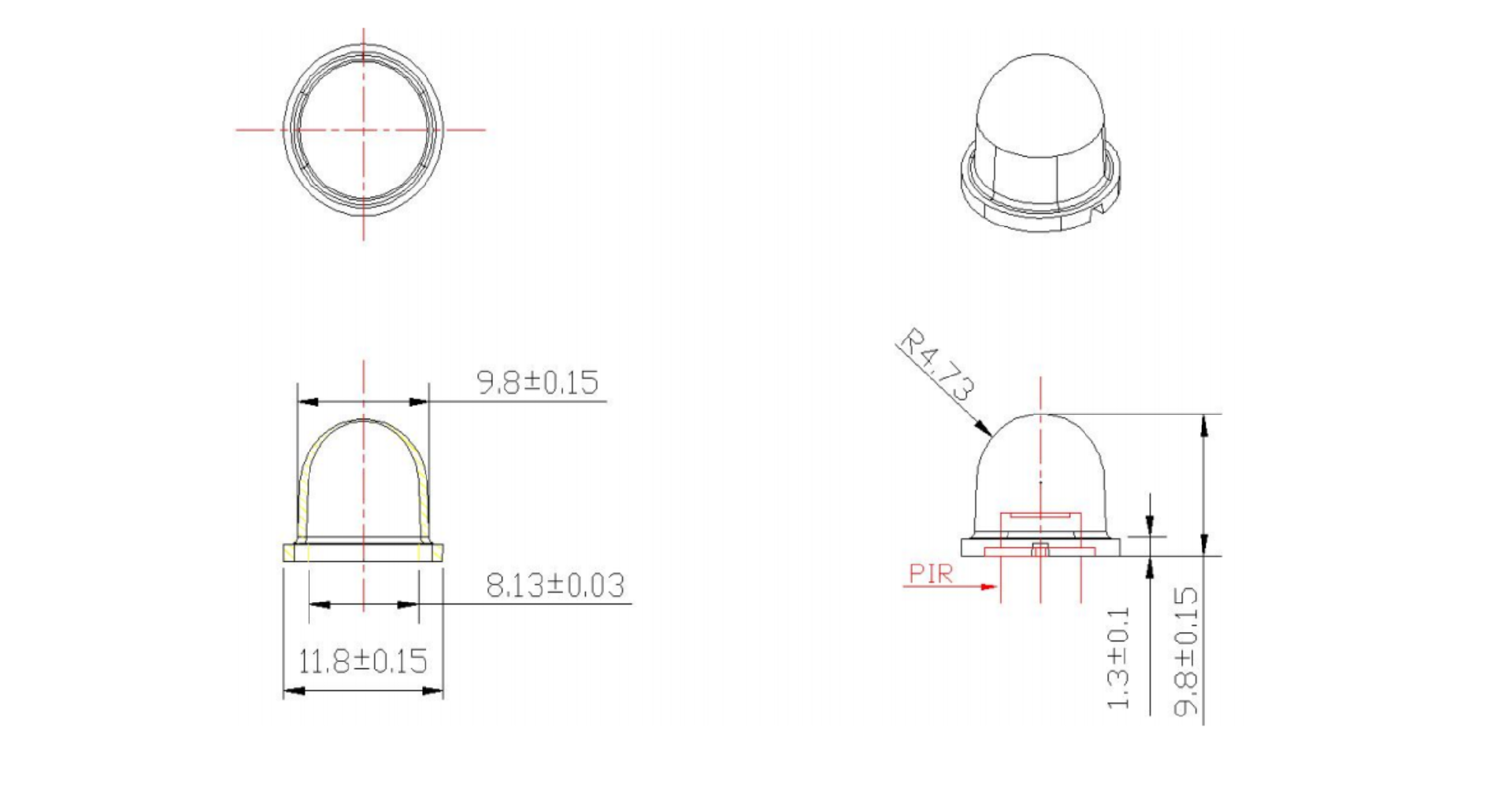

Dimension (Unit=mm)
