LVF002 Series Product Introduction
LVF002 Series Product Features
Single Channel
To-39 Housing
Therm Compensition
Voltage Mode

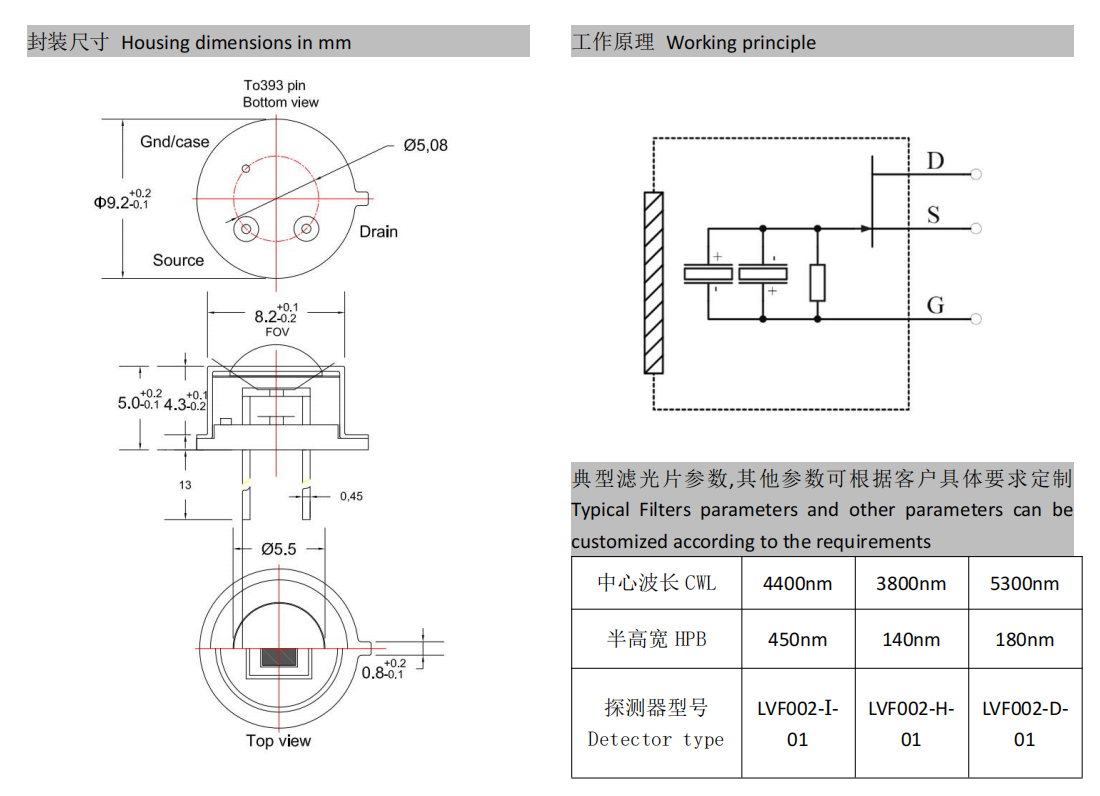

LVF002 Series Technical Data
Technical Specifications
| Technical Specifications | Symbol | Typical value | Unit |
|---|
| Window Size | - | Ф5.5 | mm |
| Element Size | As | 2*2 | mm |
| Electrical Time Constant | τE | 3.0 | s |
| Thermal Time Constant | τT | 200 | ms |
| Offset voltage | Vs | 0.4—0.8 | V |
| Drain Voltage | Vd | 2-15 | V |
| Field of View | FOV | >110 | ° |
| Noise {10Hz, BW 1Hz, 25℃} | Vn | <130 | nVrms/Hz1/2 |
| Voltage Responsivity (Without Filter) {500K,10Hz,25℃} | Rv | >160 | V/W |
| Detectivity (Without Filter) {500K,10Hz,BW 1Hz,25℃} | D | >4*108 | cmHz1/2/W |
| Operating Temperature | - | -25—+80 | ℃ |
