NBP8350-270nm

NBP8350-270nm Product Introduction

Infrared narrow-band filters are optical components developed by Senba Sensing. They are manufactured using precise coating technology to transmit only light of a specific wavelength within a narrow bandwidth while blocking other wavelengths. Infrared narrow-band filters are suitable for applications such as chemical gas detection, infrared sensing, spectral measurement, and other systems requiring selective wavelength filtering.

NBP8350-270nm Product Features

• High cut-off depth

• High transmittance

• Wide cut-off range

• Substrate, thickness and size can be customized

NBP8350-270nm Technical Data

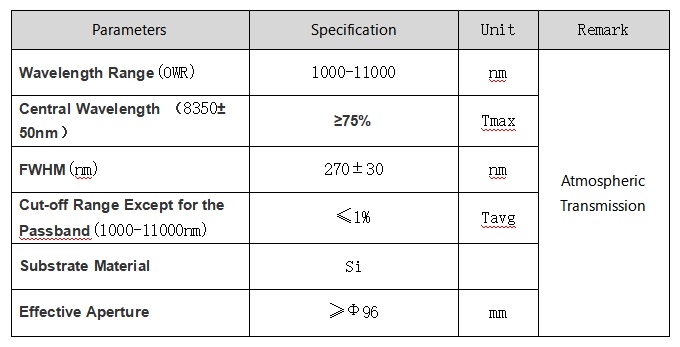

Data Parameters

Spectrum Chart

NBP8350-270nm Product Specification Document

Access detailed technical information, configuration guides, and solutions notes to support your evaluation and implementation of the NBP8350-270nm Series.

• NBP8350-270nm Datasheet

  Comprehensive technical specifications and detailed reference data for modules and components.

  Download
• NBP8350-270nm Pinout

  Standard pin assignment, interface definition and signal pin functions for reliable connection.

  Download
• NBP8350-270nm Circuit Diagram

  Complete wiring diagram, application schematic and typical connection scheme for design reference.

  Download
