PROD Model:SB-F-03
Material : HDPE
Overall Size:Grain diameter 23mm(φ26*17mm)
Focal Length:11.5mm
Detectable Distance:≥10m
Viewing Angle:120°
Color : primary color 、black、 milky(Color customization is acceptable)
The SB-F-03 Fresnel lenses are optical components developed by Senba Sensing. The SB-F-03 lenses are widely used in human body sensing switches, alarms, infrared thermometers, and infrared imaging systems. They are available in various sensing angles, detection distances, sizes, and test ratios to accommodate diverse application requirements.
Downlight
Ceiling light
Yard light
| PROD Model | SB-F-03 |
| Material | HDPE |
| Overall size | Grain diameter 23mm(φ26*17mm) |
| Focal length | 11.5mm |
| Detectable distance | ≥10m |
| Viewing angle | 120° |
| Color | primary color, black, milky (Color customization is acceptable) |

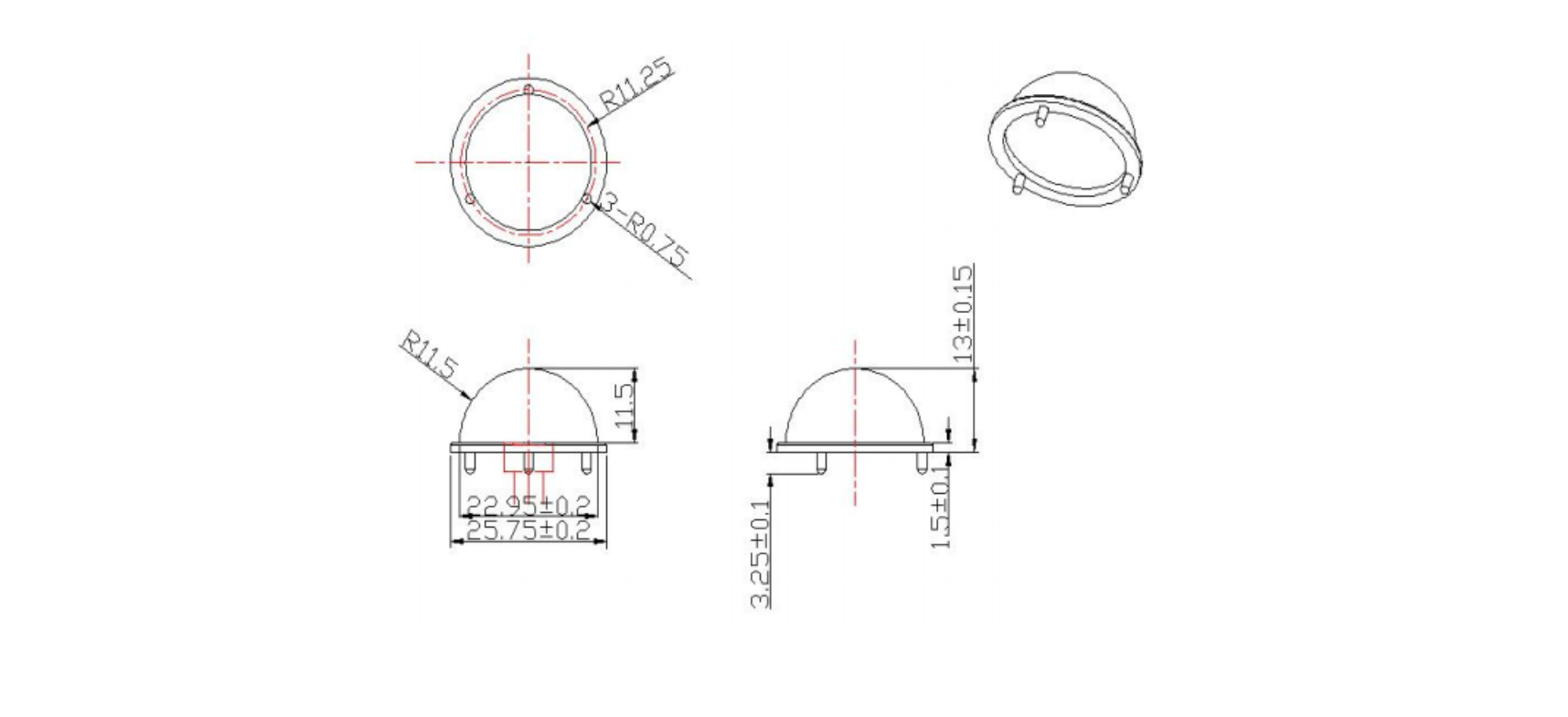

Dimension (Unit=mm)
