Home > Products > Fresnel Lens > SB-F-14

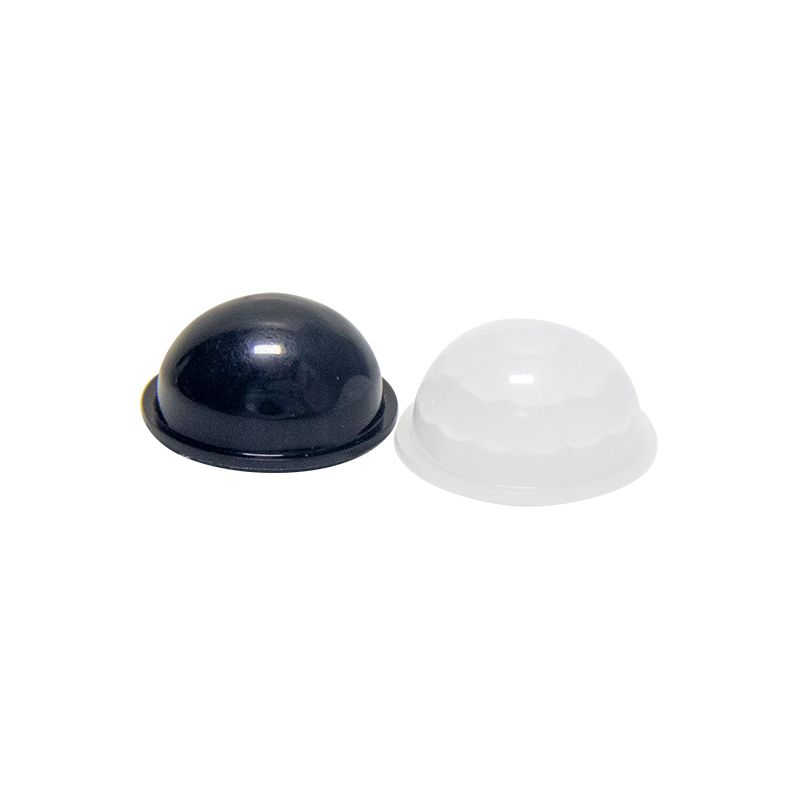

SB-F-14

PROD Model:SB-F-08
Material : HDPE
Overall Size:Grain diameter 9.9mm(φ12*9.8mm)
Focal Length:5mm
Detectable Distance:≥5m
Viewing Angle:120°
Color : primary color 、black、 milky(Color customization is acceptable)

Overview

This lens is widely used in Senba SMD series pyroelectric infrared sensor, human body switch, alarm infrared thermometer and infrared imaging. It can provide users with different induction angles, one is the focusing effect, the other is to divide the detection area into bright and dark areas, so that the moving objects entering the detection area can generate changing thermoluminescent infrared signals on the PIR(passive infrared detector) in the form of temperature changes

Feature

Small night light

Cabinet light

Smart table lamp

Datasheet

PROD ModelSB-F-14
MaterialHDPE
Overall sizeGrain diameter 9.9mm(φ12*9.8mm)
Focal length
6mm
Detectable distance
≥6m
Viewing angle
120°
Colorprimary color 、black、 milky(Color customization is acceptable)

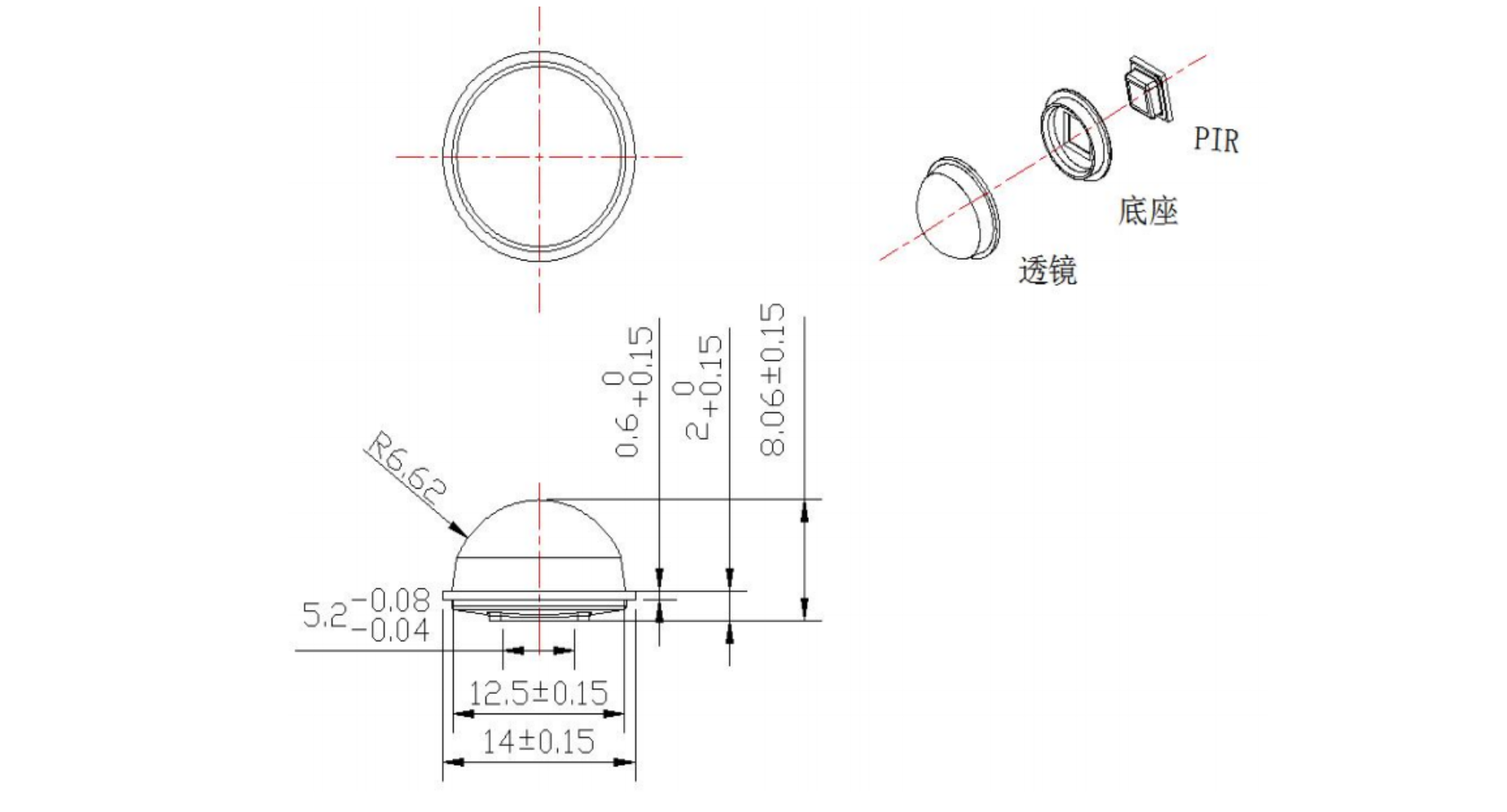

Dimension (Unit=mm)
